| Model: | YMPZ-2A, Disc Diameter 300mm And 250mm | Display: | High-definition LCD Touch Screen, Easy Operation |
|---|---|---|---|
| Grinding Disc: | Special Self-adaptive Design Of Grinding Disc | Locking Function: | Automatic Locking Function Of The Grinding Head, Safe Operation |

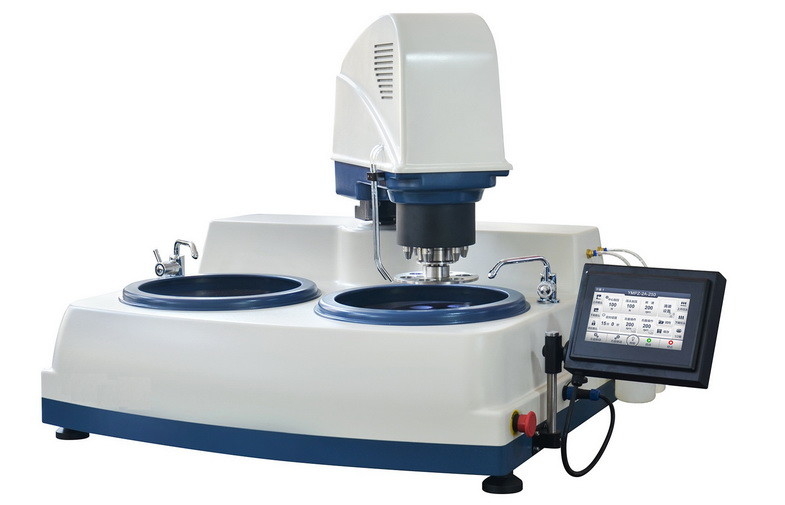

Double Disc Automatic Metallographic Sample Grinding and Polishing Machine iqualitrol YMPZ-2A
Technical Data Download: iqualitrol Grinding and Polishing Machine YMPZ-2A
Brief Introduction:
The iqualitrol YMPZ-2A is a single-chip microcomputer controlled grinding and polishing machine. The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable. It is stepless speed control and can change the rotational direction.
The grinding head has individual pressure and central pressure two methods. This machine can effectively replace the manual grinding and polishing processes, which greatly saves labor and improves the quality of grinding and polishing and the efficiency of sample preparation.
Technical Specifications:
| Model | YMPZ-2A-300 | YMPZ-2A-250 |
| Disc Diameter | 300mm | 254mm |
| Abrasive Paper Diameter | 300mm | 250mm |
| Disc Speed |
Stepless speed 50~1000r/min, |
|
| Disc Rotational Direction | Clockwise and Counterclockwise | |
| Disc Electromotor | DC brushless motor, 220V, 1.5kW | |
| Head Electromotor | DC brushless motor, 220V, 750W | |
| Head Speed | Stepless speed 20~120r/min | |
| Timing Set | 0~99min | |
| Sample Holding Qty. | 6 pcs | |
|
Sample Holder |
Φ25mm, Φ30mm, Φ40mm (Choose one) |
|
| Pressure Method | Individual pressure and Central pressure | |
| Individual Pressure Force | 0~50N | |
| Central Pressure Force | 0~160N | |
| Control and Display | 7 inch LCD touch screen | |
| Suspension Volume | 500ml, 2 bottles | |
| Power Supply | 220V, 50Hz, 12A | |
| Dimensions | 1200×800×760mm | |
| Net Weight | 134kg | |
Features:
1.With high-definition LCD touch screen, the operation is easy and the display is clear and intuitive.
2.It is an automatic grinding and polishing system, the time and speed can be set and the water value is automatically controlled, which can effectively replace manual grinding and polishing.
3.With special self-adaptive design of grinding disc, it makes the sample and grinding disc fit perfectly, which effectively solve the multi-faceted phenomenon and ensures the consistency of grinding surface.
4.With the automatic locking function of the grinding head, the operation is safe and convenient.
5.With magnetic grinding disc design, it supports for fast disc replacing system. The disc surface is Teflon painted which makes no residue of changing abrasive paper and polishing cloth.
6.It is double disc design, so the grinding and polishing process can be done independently.
7.The motor is DC brushless motor which has long service life and low noise and powerful motor brings strong power and efficient grinding and polishing experience.
8.Strong large support chassis design ensures the precision rotary balance. Spindle leak-proof design ensures the bearing without damage.
9.It can store ten kinds of grinding and polishing procedure, set different parameters for different samples.
10.With semi-rotating design of the grinding disc and the inner lighting system, it easy to take and place the samples.
11.Built in two-path suspension automatic dropping system, can work by timing and quantification to realize fully automatic polishing.
