Product Details:
Payment & Shipping Terms:
|
| Model: | Salt Spray Test Chamber ZK-60A | Material: | Sturdily P.V.C Sheet |
|---|---|---|---|
| Heating: | From Five Directions To Ensure The Temperature Is Uniformity Distributed | Spray Nozzle: | Spray The Salt Water With Considerable Speed, Then Falls On The Surface Of Samples |

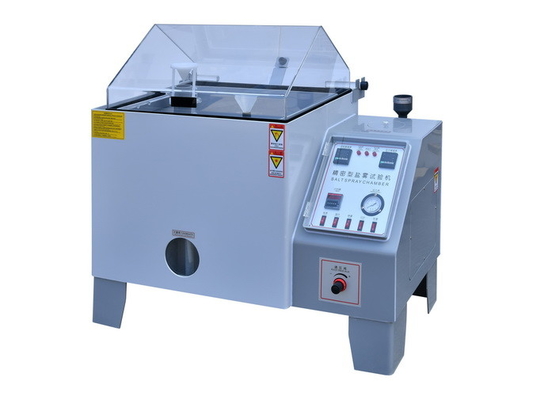

Salt Spray Test Chamber ZK-60A
Brief Introduction:
Salt Spray Test Chambers offer the most realistic and dependable corrosion test, widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronics, car industry, offshore and defense industries.
ZK-120A or higher volume models conform Standard Practice for Operating Salt Spray (Fog) Apparatus ASTM B117.
Technical Specifications:
| Model | ZK-60A | ZK-90A | ZK-120A | ZK-160A | ZK-200A | ||
|
Interior dimensions (mm) |
W | 600 | 900 | 1200 | 1600 | 2000 | |
| D | 450 | 600 | 850 | 1000 | 1200 | ||
| H | 400 | 500 | 500 | 900 | 600 | ||
|
Exterior dimensions (mm) |
W | 1130 | 1460 | 2200 | 2600 | 3000 | |
| D | 630 | 910 | 1200 | 1450 | 1650 | ||
| H | 1070 | 1280 | 1450 | 1550 | 1600 | ||
| Chamber Volume | 108 L | 270 L | 480 L | 1440 L | 1440 L | ||
| Solution Tank | 15L | 25 L | 40 L | ||||
| Power Supply | AC 220V/50HZ/1Ph | AC 380V/50HZ/3Ph | |||||
| Ambient temp. & humid. range | +5℃ ~ +35℃ / <85%RH | ||||||
| Testing Temperature | NSS ACSS 35℃±1℃ / CASS 50℃±1℃ | ||||||
| Air Temperature | NSS ACSS 47℃±1℃ /CASS 63℃±1℃ | ||||||
| Solution Consistence | NaCl 5% | ||||||
| PH Value | NASS ACSS:6.5~7.2 / CASS:3.0~3.2 | ||||||
| Temperature fluctuation | ≦±0.5℃ | ||||||
| Temperature uniformity | ≦2. 0℃ | ||||||
| Temperature deviation | ≦±2.0℃ | ||||||
| Spray quantum | 1.0~2.0(ml/80cm2/h) | ||||||
| Chamber Material | polyvinyl chloride (PVC) | ||||||
| Heater | Corrosion-resistant titanium tube | ||||||
| Temperature sensor | Platinum Resistance (PT-100) | ||||||
| Safety device | Over-temperature protection, leakage protection | ||||||
1. The above specifications are for reference only, the actual specifications for the main quotation.
2. Custom made is available according to customers’ special requirements
Main Features:
1, Chamber material is made of P.V.C Sheet, sturdily and will not be out of shape.
2, Test chamber is heated from five directions to ensure the temperature is uniformity distributed.
3, Spray nozzle is specially made, enable to spray the salt water with considerable speed, then falls on the surface of samples.
4, Hot and moist air keeps the humidity in the test chamber conforms testing request.
5, High precision P.I.D. temperature controller limits the temperature difference within the range of ±0.1℃.
