| Cutting Chamber: | In Features Of Excellent Visibility, Powerful Cutting Capability | Automated Cutting Process: | Easy To Operate, And Safe And Reliable |
|---|---|---|---|
| Sample Clamp: | Various Fixtures And Can Cut Workpieces Of Irregular Shapes | Door Design: | Sliding Door And Hinged Door, To Load Large Workpieces |
| Cutting Control: | Automatic And Precise Control In X, Y, And Z Directions | Visual Window: | Dual LED Lighting And Automatic Fog Removal System |

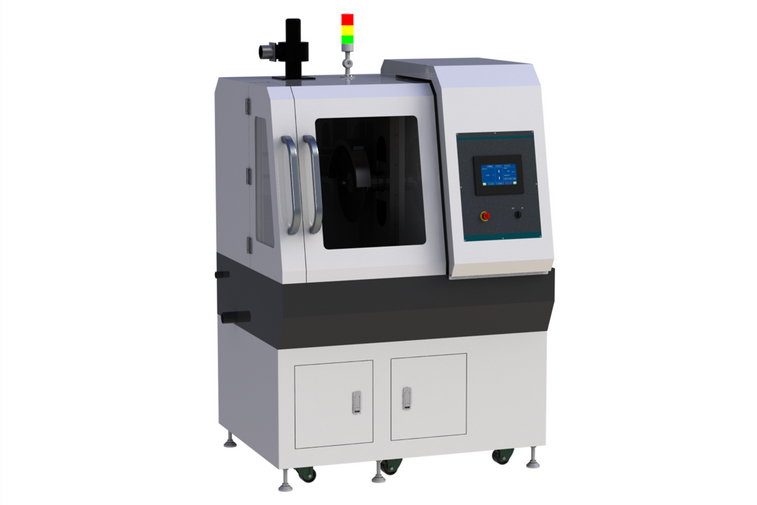

Vertical Automatic Metallographic Cutting Machine HQGZ-150XYZ for Large Specimens
Brief Introduction:
The iqualitrol HQGZ-150XYZ is a vertical fully automatic metallographic cutting machine, featuring a spacious cutting chamber, excellent visibility, and powerful cutting capability.
The cutting process is fully automated, easy to operate, and safe and reliable. It is equipped with a high-power motor, providing strong force and high efficiency.
HQGZ-150XYZ can be fitted with various fixtures and can cut workpieces of irregular shapes, making it an ideal device for cutting large samples.
Key Features:
The designing of sliding door and hinged door makes the machine more convenient to load large workpieces.
Advanced control system enables automatic and precise control in X, Y, and Z directions, offering multiple cutting modes including continuous and pulse modes, allowing fully automatic cutting for various materials.
Equipped with high-power standard motor and stepless speed control system, providing strong power and high efficiency.
Fitted with dual LED lighting and automatic fog removal system, enhancing brightness and clarity inside the workspace.
Equipped with a mobile magnetic filtration circulating water tank to prevent clogging and improve efficiency.
Laser-assisted positioning function ensures more accurate specimen cutting alignment.
Components such as the jaw and worktable are made of stainless steel, ensuring long service life.
Technical Specifications:
| Rotation Speed | 500-2800rpm, adjustable |
| Cutting disc diameter | Support diameter Φ200-Φ400mm |
| Table Dimension | 350*450mm |
| Feed Speed | 0.01-5mm/s |
| X Axis Travel | 100mm |
| Y Axis Travel | 250mm |
| Z Axis Travel | 200mm |
| Cutting Capacity | 150mm for cylinder specimens |
| Motor Power | 5.5KW |
| Power Supply | AC380V/50Hz/3Ph/5-wire |
| Water Tank | 80L, Dimension 550*610*735mm |
| Machine Dimension & Weight | 1250*1000*1850mm, 900Kg |
