| Features: | High Transmission Power And Low Noise | Model: | ISGM-2-300 |
|---|---|---|---|
| Speed: | Stepless Speed 100~1400r/min | Technology: | Spray Coating Technology |
| Double Disc: | Two Discs Are Independently Operated | Function: | Dust Collecting Device |

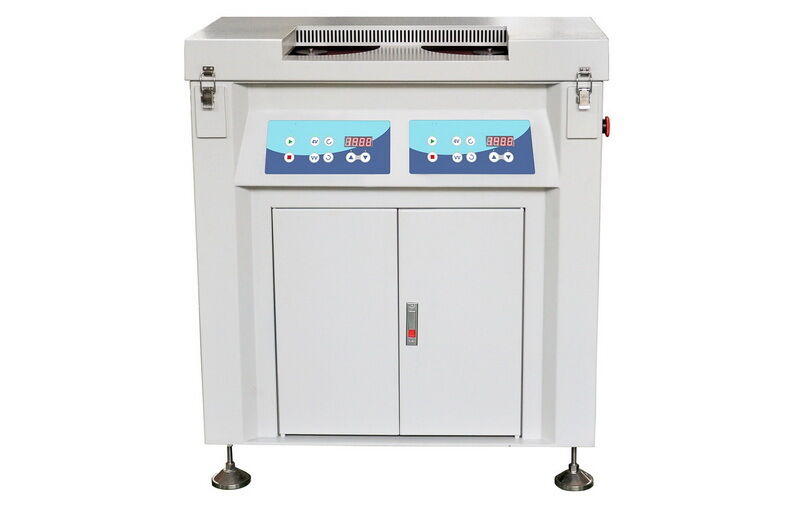

Double Disc Spectrum Grinding
Machine iSGM-2-300 adopts spray coating technology
Brief Introduction:
The iqualitrol iSGM-2-300 adopts spray coating technology for the whole machine. Two discs are independently operated and stepless speed control.
Special cover design can effectively guarantee the safety of grinding samples.
There is a dust collecting device installed in the cabinet which can avoid environmental pollution.
The machine has stable start-up, high transmission power and low noise, which can meet the preparation requirements of different materials and improve the grinding and polishing quality and efficiency.
Technical Specifications:
| Model | iSGM-2-300 |
| Disc Diameter | 300mm |
| Abrasive Paper Diameter | 300mm |
| Speed |
Stepless speed 100~1400r/min, and Four speed 300, 600, 900, 1400r/min |
| Rotational Direction | Clockwise and Counterclockwise |
| Electromotor Power | 550W |
| Control and Display | Film key operation, Nixie tube display, With dust collecting device |
| Power Supply | 220V, 50Hz, 10A |
| Dimensions | 820×440×940mm |
| Net Weight | 122kg |
Packing List:
| Name | Specification | Qty |
| Machine Body | 1 set | |
| Grinding Disc | 300mm | 2 pcs |
| Abrasive Paper | 300mm | 2 pcs |
| Inner Hexagon Spanner | 1 pc | |
| Usage Instruction Manual | 1 copy |
