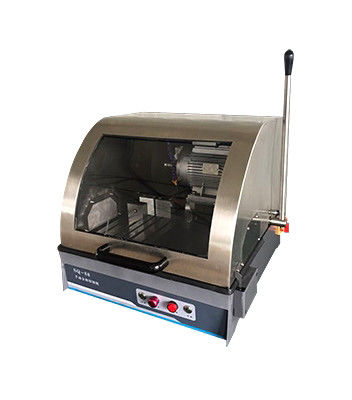

Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm

China Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm supplier
Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm supplier Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm supplier Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm supplier Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm supplier

Large Image :  Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: XCut-343

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets Per Month
Detailed Product Description
Speed: Rotate Speed 2800rpm Dimension: Cut Wheel Φ250mm X1.2mm X32mm
Diameter: Cut Diameter Φ80mm Power Supply: 380V/50HZ/3Ph/4 Wires
Cooling: Water Cooling Motor: 3000W
Highlight:

metallographic sample cutting machine

,

metallurgical laboratory equipment



XCut-343 Manual Metallographic Cutting Machine With CE Certification



Brief Introduction:



XCut-343 is suitable for cutting all kinds of specimens including metallic materials and nonmetallic materials so as to observe metallographic structure and lithofacies structure.



The built-in cooling circuit could help to prevent burning the sample tissue due to overheating durning the cut-off process.



XCut-343 is quiet convenient , safety and reliable .It is one of the specimen-making equipments necessary for metallographical test for factory ,researching unit and college and university laboratory .


Technical Parameters:

Model XCut-343
Input voltage 380V/50HZ/3Ph/4 Wires
Wheel speed 2800r/min
Cutting wheel size Φ250mm x1.2mm x32mm
MAX cutting diameter Φ80mm
Motor Y2-1001-2-2 3KW
Dimension 690mm x740mm x670mm



Manual Metallographic Cutting Machine:



When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.



One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.



Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.



Water Cooling Manual Metallographic Cutting Machine With CE Certification Max Cut Section 80mm
