Product Details:
Payment & Shipping Terms:
|
| Model: | IZQ-300F | Cut Capacity: | Maximum Cutting Diameter 120mm |
|---|---|---|---|
| X-axis: | Automatic Cutting Method, X-axis Stroke 70mm | Speed: | Spindle Stepless Speed Regulation 100-3000rpm |
| Controller: | Color Touch Screen PLC Control | Cutting Blade: | Cutting Blade 400*32*3.0mm, With Magnetic Separation System |

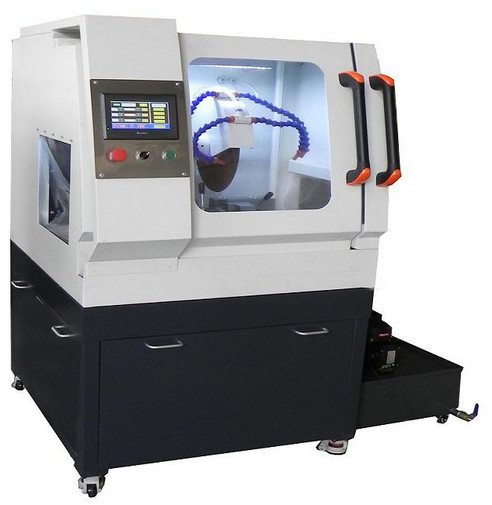

Floor-Standing Large intelligent Automatic Metallographic
Cutting Machine iZQ-300F
Brief Introduction:
The latest iqualitrol Floor-standing type Automatic Metallographic Cutting Machine, with maximum cutting diameter 120mm.
Apply automatic cutting method, X-axis stroke 70mm, spindle stepless speed regulation 100-3000rpm, color touch screen PLC control, X/Y dual-axis positioning cutting, cutting blade 400*32*3.0mm, with magnetic separation system.
Technical Specifications:
| Model | iZQ-300F |
| Spindle Speed | 100-3000rpm, stepless speed |
| X-axis stroke | 70mm |
| X-axis speed | 0-100mm, stepless speed |
| Z-axis stroke | 150mm |
| Z-axis speed | 0-200mm |
| Y-axis stroke | 200mm |
| Y-axis speed | 0-200mm, stepless speed |
| Controller | 8” color touch screen PLC control |
| Max Section | Diameter 120mm for Cylinder specimen |
| Disc type Section | ∅300*100mm |
| Cutting Mode | Vertical, Horizontal, Stratified cutting |
| Feed Type | Feed and retreat ratio can be set |
| Effective feed distance | 150+200mm |
| Completion tracking | Real time digital display |
| Work Table | 650*300mm |
| Cutting disc | (250-380)*(2-3)* 32mm |
| Clamp | Split double layer movable platform |
| Clamp Table | Stainless Steel |
| Cutting Speed | 1-200mm/min |
| Speed Adjust | Arbitrary adjustment |
| Reset Mode | Auto Reset |
| Cooling System | Automatic water Cooling (4 channels) |
| Water Tank | 75L |
| Power | 4KW (ABB Motor) |
| Machine Type | Floor-standing type |
| Power Supply | AC380V/50hz/3ph |
| Net Weight | 500KG |
