|Speed:||Rotate Speed 2800rpm||Dimension:||Cutting Disc Φ350mm X2.5mm X32mm|
|Diameter:||Cut Diameter Φ100mm||Power:||Power Consumption 3KW|
|Cooling:||Water Cooling||Cutting:||Manual Cutting|
metallurgical sample preparation equipment,
metallurgical laboratory equipment

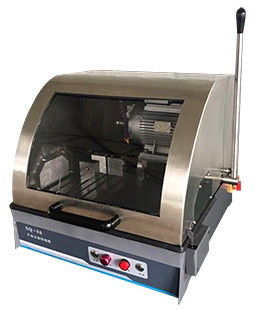

Safe Manual Metallographic Sample Preparation Equipment For Specimens
XCut-344 is suitable for cutting all kinds of specimens including metallic materials and nonmetallic materials so as to observe metallographic structure and lithofacies structure.
The cooling circuit could help to prevent burning the sample metallographic structure due to overheating during the cutting process.
XCut-344 is quiet convenient , safe and reliable .It is one of the necessary specimen-making equipment for metallographic test for factory ,researching unit and college and university laboratory
|Cutting wheel size||Φ350mm x2.5mm x32mm|
|MAX cutting diameter||Φ100mm|
|Dimension||690mm x790mm x800mm|
How to Cut Larger Specimen?
When cutting a specimen from a larger piece of material, care must be taken to ensure that it is representative of the features found in the larger sample, or that it contains all the information required to investigate a feature of interest.
One problem is that preparation of the specimen may change the microstructure of the material, for example through heating, chemical attack, or mechanical damage. The amount of damage depends on the method by which the specimen is cut and the material itself.
Cutting with abrasives may cause a high amount of damage, while the use of a low-speed diamond saw can lessen the problems. There are many different cutting methods, although some are used only for specific specimen types. iqualitrol provides the iCut-864 low speed diamond saw for cutting OM (optical microscope), SEM (scanning electron microscope), and even TEM (transmission electron microscope) specimen.
