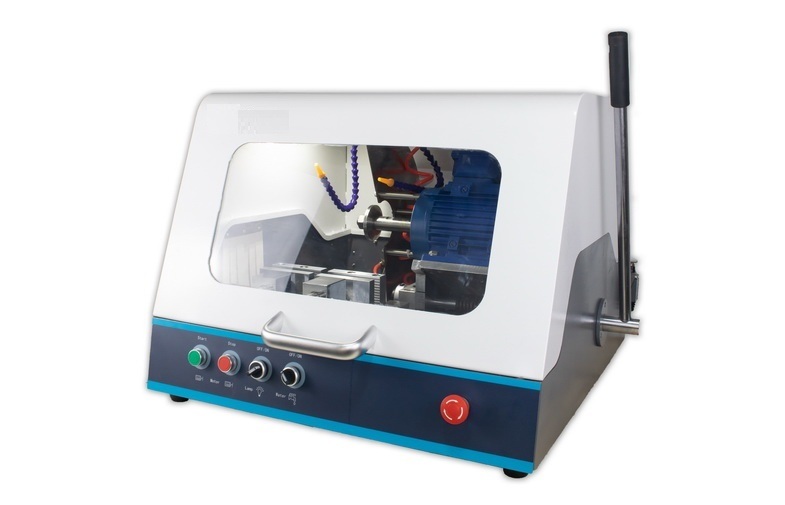

Water Cooling Manual Metallographic Cutting Machine HQG-100 with double-shell structure

Manual Metallographic Cutting Machine HQG-100

Brief Introduction:

In the process of metallographic specimen preparation, cutting the specimen is the first important step. The iqualitrol HQG-100 cutting machine can be used to cut general metallographic and petrographic materials.

To ensure that specimens can be cut under absolutely safe conditions, this machine features a fully enclosed double-shell structure and equipped with a cooling water tank, allowing the prepared coolant to be used in a circulation system.

To extend the service life of the equipment and facilitate maintenance, the key components of HQG-100, like inner shell, grinding wheel spindle sleeve, vise jaws, and worktable surface, are made of corrosion-resistant materials.

The iqualitrol HQG-100 is the best equipment for specimens cutting, particularly suitable for metallographic laboratories in factories, colleges, universities, and research institutions, making it an excellent device for metallographic specimen cutting.

Main Functions and Features:

1. Major components such as the shaft sleeve and worktable are made of corrosion-resistant materials, ensuring long service life.

2. The worktable and motor mounting frame are securely fixed, with surfaces treated by sandblasting for aesthetics and durability.

3. Workpieces are fixed with quick clamps, making it convenient, fast, safe, and reliable (optional).

4. The overall mechanism rotates smoothly, with low noise and long service life.

5. The viewing window is made of impact-resistant transparent PC board, ensuring safety and reliability.

6. Waterproof LED lights are used for illumination, making it easy to observe the entire cutting process.

7. Equipped with a cooling device and water tank, allowing the coolant to be recycled, saving costs and improving efficiency.

8. Maximum cutting diameter is 100mm.

Technical Specifications:
