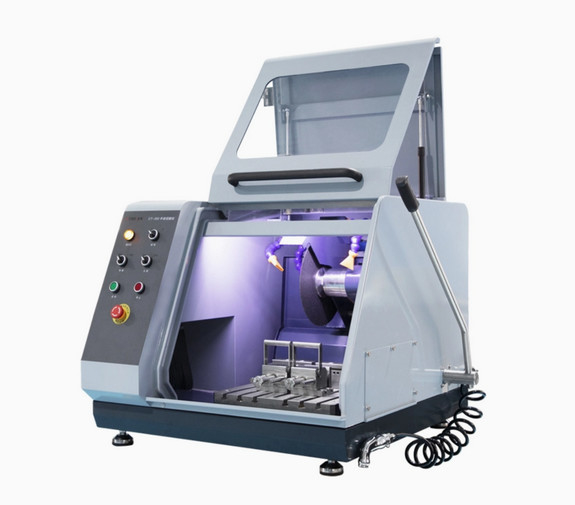

CT-300 Manual Cut-Off Machine Max Capacity Cylinder Diameter 100mm

China CT-300 Manual Cut-Off Machine Max Capacity Cylinder Diameter 100mm supplier

Large Image :  CT-300 Manual Cut-Off Machine Max Capacity Cylinder Diameter 100mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: CT-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Cutting Disc: Can Be Used With Ф300mm And Ф350mm Cutting Blades Motor: High-power Motor (5.5Kw) To Make The Cutting More Powerful And Labor-saving
Application: Cutting Of The Specimens Of Various Shapes, Sizes, And Complex Materials Safety Door: Putting Samples Into The Cutting Chamber Easy And Fast
Operate Panel: To Cut Workpieces Quickly And Efficiently With Minimal Training Cooling: Enlarged Cooling Pipes For More Adequate Cooling


CT-300 Manual Cut-off Machine Max Capacity Cylinder Diameter 100mm


Technical Data Download: iqualitrol Manual Cut-Off Machine CT-300



1. Adopts high-power motor (5.5Kw) to make the cutting more powerful and labor-saving;

2. Cast aluminum base, integrated worktable, strong rigidity, making cutting more stable;

3. Extra large working surface and operating space for faster specimen clamping;

4. The simple and clean operator panel allows any operator to learn how to use quickly;

5. Enlarged cooling pipes for more adequate cooling;

Technical parameter:

Model CT-300
Cutting Blade Speed Two gears:2000 & 2500rpm
Diameter Ф300~Ф350mm
Center hole 32mm
Cutting capacity
Diameter Ф100mm
Height x Length 90x130mm
Cutting length 240mm
Workbench Size(WxD) 385x330mm
T-slot width 12mm
Electric Input 3x380V/50Hz+Earth wire(E) (Optional voltage:3x220V)
Cutting power 5.5KW
Current, normal load 12A
Safety Emergency stop Press to cut off the control circuit and main power
Safety door lock When the door is open, it cannot be started; when it is running, the door is locked and cannot be opened
Overload protection Automatic shutdown when overload current is exceeded
Cooling System Capacity 100L
Dimension(WxDxH) 420x680x350mm
Interface Inlet water: Ф19 inner diameter high pressure pipe;
Water outlet: Ф38 inner diameter steel wire pipe
Cooling water 4-way cooling tube,
flow rate: 100L/min
Exhaust System Recommended exhaust volume 150m³/h
Advanced Features X Cutting table,manual Optional
Exhaust system Optional

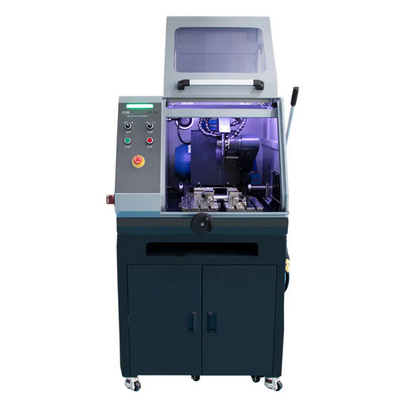

Removable vertical cabinet Optional
Dimension W×D×H 906*950*702(closed)906*950*1170(open)
Weight Machine 235kg
