20°/60°/85°Gloss Meter GM-268

China 20°/60°/85°Gloss Meter GM-268 supplier

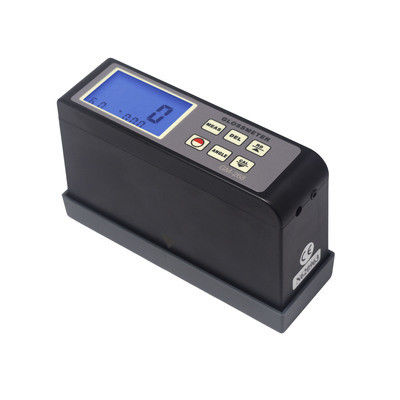

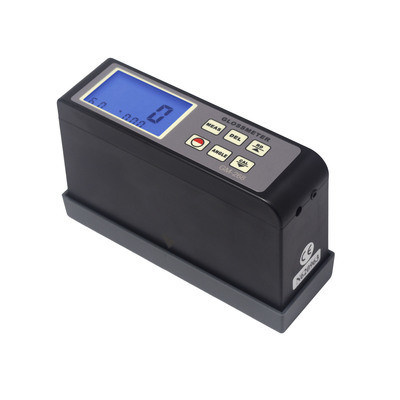

Large Image :  20°/60°/85°Gloss Meter GM-268

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: GM-268

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Measuring Angle: 20º/60º/85º Range: 0.1~200 Gloss Units
Data Memorized: 254 Groups Operating Conditions: Temp:0~40ºC Humidity:<85%RH
Power Supply: 3.7V Lithium Ion Rechargeable Battery Dimensions: 140x45x75mm
High Light:

non destructive testing instruments


fruit hardness tester


Spec: Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement



* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.

* Accurate measurement, good repetitveness.

* Small in size, easy to carry.

* Auto calibration.

* Intelligent design, rapid measurement.

* Able to store 254 groups of measurements.

* Built-in lithium ion rechargeable battery.

* Backlight display, suitable for low light environment.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice


Material And Angle Selection Recommended

* 20°: High gloss paint, printing ink, plastics, paper and other materials.

* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.

* 85°: Low gloss paint, camouflage coatings materials.



Display 4 Digits Backlit LCD
Measuring Angle 20º/60º/85º
Range 0.1~200 Gloss Units
Gloss Units GU
Accuracy ±1.0GU
Resoltuion 0.1
Repeatability ±0.5GU
Measuring Area 7x14mm(Ellipse)
Data Memorized 254 Groups
Operating Conditions Temp:0~40ºC Humidity:<85%RH
Power Supply 3.7V Lithium Ion Rechargeable Battery
Dimensions 140x45x75mm
Weight 305g(Including Batteries)
Stabdard Accessories Main Unit
Holder with Calibration Standard
AC Adapter
Optical Cleaning Cloth
Carrying Case
Operation Manual
