Product Details:
Payment & Shipping Terms:
|
| Model: | Iqualitrol HBST-3000ZS | Turret: | Auto Turret, 1x And 2x Lens, 1 Brinell Indenter |
|---|---|---|---|
| Hardness Value: | Digital Display Micrometer Eyepiece And Accurate Data Calculation System | Data Saving: | 100 Groups Of Test Data, And The Average Value And Number Of Times Can Be Displayed On LCD |
| Data Printing: | Built-in Printer To Output Measurement Data | Test Space: | Height * Depth = 370mm * 170mm |

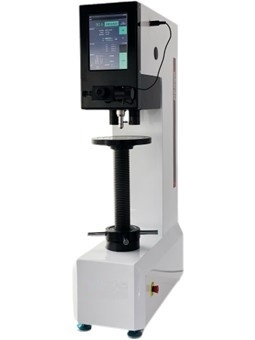

Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS
Technical Specifications:
| Model | HBST-3000ZS |
| Brinell scale | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test force (11 levels) | 31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Hardness reading | Automatic calculation |
| Hardness value unit conversion | Automatic conversion: Vickers, Rockwell |
| Screen | 8-inch touch screen, the machine will automatically sleep if not operated for a long time |
| Loading process | Real-time display of loading time and loading force curve, loading time <8s |
| Load control | Automatic (loading/holding/unloading) |
| Turret | Automatic turret, Brinell indenter and two objective lens |
| Maximum test piece height | 370mm |
| Indenter-outer wall distance | 170mm |
| Objective lens | 1X, 2X |
| Eyepiece | 20X |
| Total magnification | 20X, 40X |
| Minimum measurement division value | 20x: 0.6um; 40x: 0.30um |
| Dwelling time | 2-99s |
| Hardness test range | 3.18~653HBW |
| Implementation standard |
EN ISO 6506, , ASTM E-10-08, GB/T231.2,JJG150 -2005 |
| Data output | Built-in printer, or optional USB and host software, measurement software |
| Power supply | AC220+5%,50~60Hz |
| Dimension | 595*245*1000mm |
| Net weight | About 175kg |
