| Model: | 3HBST-3000ZS | Lifting Mode: | Automatic Lifting, One-button Testing |
|---|---|---|---|
| Focus: | Automatic Focus, No Need For Manual Lifting Screw Focusing | Automatic Turret: | 2 Objective Lens, 3 Indenters |

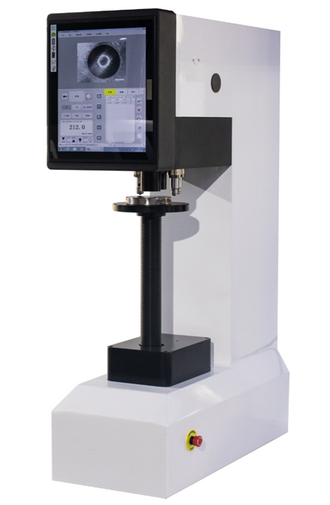

Dual Objective Lens Three Indenters Touch Screen Automatic Turret Brinell Hardness Tester 3HBST-3000ZS
Main Functions and Features:
1. The iqualitrol 3HBST-3000ZS has the features of high precision, high repeatability and stability, simple operation, convenience and practicality, and extremely high cost performance;
2. Integrated embedded industrial tablet computer, supports USB expansion;
3. Equipped with the latest Windows operating system;
4. With 11 levels of test force, it can test a wider range;
5. Accurate data calculation system, just a click to directly display the hardness value;
6. Automatic lifting, no need to manually raise the lead screw.
7. Multi-station turret, equipped with three indenters and two objective lenses.
8. The system has a calibration function, and the input calibration instrument can be manually adjusted.
9. Support hardness conversion.
Technical Specifications:
| Model | 3HBST-3000ZS |
| Brinell scale | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5 HBW5/125, HBW5/250, HBW5/750 HBW10/100 HBW10/250 HBW10/500,HBW10/1000 HBW10/1500 HBW10/3000 |
| Test force (11 levels) | 31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Hardness reading | Automatic measurement |
| Hardness value unit conversion | Automatic conversion: Vickers, Rockwell |
| Screen | 12-inch display |
| Loading process | Real-time display of loading process, loading time <8s |
| Load control | Automatic (loading/holding/unloading) |
| Workstation | Five stations, can be equipped with 2 objective lenses and 3 indenters at the same time |
| Lifting | Automatic lifting, one-button testing |
| Focus | Automatic focus, no need for manual lifting screw focusing. |
| Turret | Automatic turret, the pressure head and the objective lens rotate automatically |
| Maximum height of specimen | 330mm |
| Indenter-outer wall distance | 170mm |
| Objective lens | 1X, 2X |
| Eyepiece | 20X |
| Total magnification | 20X, 40X |
| Hardness resolution | 0.1HBW |
| Dwelling time | 1-99s |
| Hardness test range | 3.18~653HBW |
| Implementation standard | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005 |
| Data output | Optional connection to a printer to print reports |
| Power supply | AC220+5%, 50~60Hz |
| Dimensions (mm) | 595*245*1000mm |
| Main unit weight | About 135kg |
