OEM/ODM Vibration Meter JD-2493_JD-2496B Silver

China OEM/ODM Vibration Meter JD-2493_JD-2496B Silver supplier

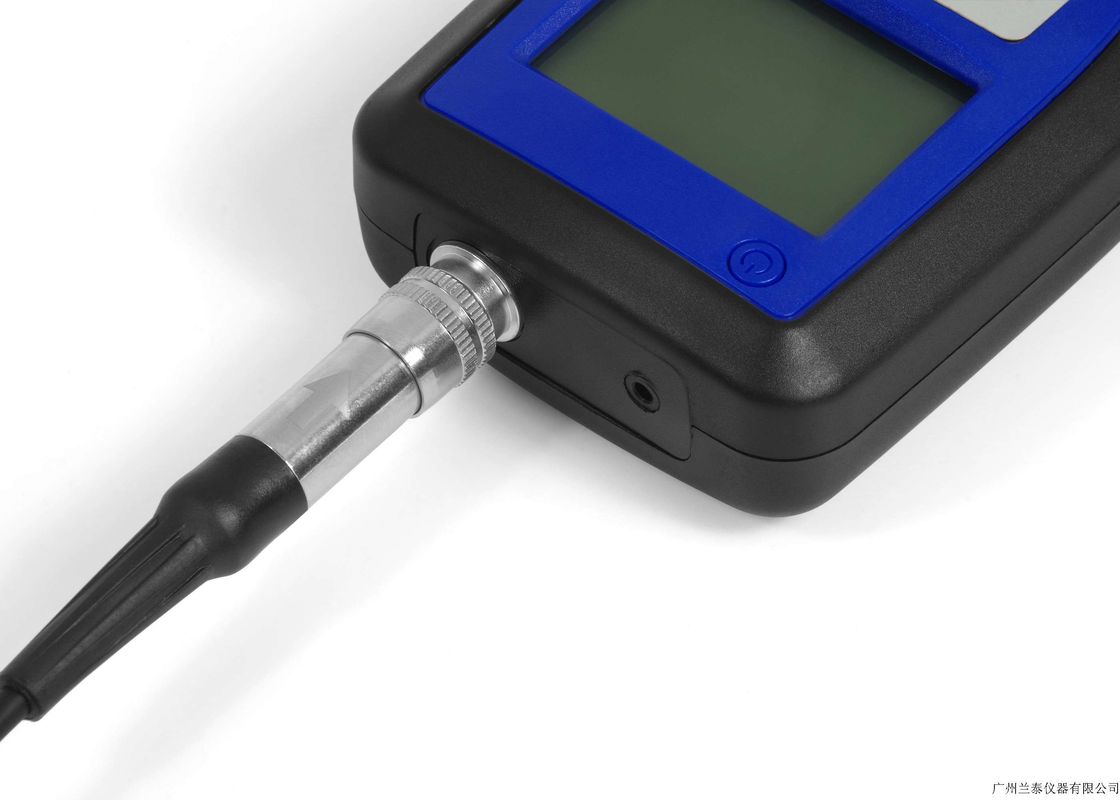

Large Image :  OEM/ODM Vibration Meter JD-2493_JD-2496B Silver

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: JD-2493_JD-2496B Silver

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotialbe
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Accuracy: 5% Of Reading+2 Digits Operating Conditions: Temperature 0~50℃
Power Supply: 4x1.5V AAA(UM-4)Battery Dimensions: 140x72x34mm
Optional Accessories: Bluetooth Data Adapter With Software
High Light:

non destructive testing machine

,

non destructive testing instruments



Spec:Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.



Features

* Landtek Instruments provide OEM/ODM services, specifically for customers to order unique instrument products, so that the product in the shape, color, function, distinguish from the same type of other products. This product difference performance, effectively improve product market competitiveness and achieve win-win situation.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality ccelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.



Vibration Standard



ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank Rev(rpm) H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132 132<H<225 225<H<400
Normal 600~3600 1.8 2.8 4.5
Good(R) 600~1800 0.71 1.12 1.8
1800~3600 1.12 1.8 2.8
Excellent(S) 600~1800 0.45 0.71 1.12
1800~3600 0.71 1.12 1.8



Specifications



Sensor Piezoelectric Transducer
Measuring Range Acceleration 0.1~400m/s Equivalent Park
Velocity 0.01~400mm/s True RMS
Displacement 0.001~4.0mm Equivalent Peak-peak
Frequency Range Acceleration 10Hz~10kHz
Velocity 10Hz~1kHz
Displacement 10Hz~1kHz
Accuracy 5% of Reading+2 digits
Operating Conditions Temperature 0~50℃
Humidity <90%RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 140x72x34mm
Weight 205g(Not Including Batteries)
Standard Accessories Main Unit
Piezoelectric Transducer
Powerful Rare Earth Magnet
Probe(Cone)&Probe(Spherical)
Carrying Case(B04)
Manual Book
Optional Accessories Headset
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software
