Product Details:
Payment & Shipping Terms:
|
| Pressure Loading: | Center Pneumatic Pressure Loading | Application: | Wafers, Lenses, Glass, And Other Thin Products That Are Not Easy To Be Mounted |
|---|---|---|---|
| Vacuum Parts: | Vacuum Suction Cups Diameter 100mm | Disc Diameter: | Single Disc, Standard Diameter φ254mm, Support Customization |
| Head Lock: | Manually Lock | Disc Speed: | Stepless Speed 100-1000r/min |

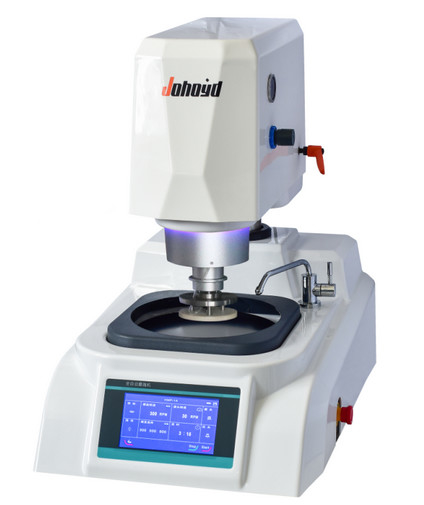

Center pneumatic pressure Automatic Vacuum Polishing Machine with Water Cooling
(Special grinding and polishing machine for wafer, lens, glass, etc.)
Model HMP-1BC
Brief Introduction:
Iqualitrol HMP-1BC is a single-disk automatic vacuum grinding and polishing machine integrating pre-grinding, grinding and polishing.
Equipped with vacuum components and vacuum suction cups, it specializes in grinding and polishing wafers, lenses, glass, and other thin products that are not easy to be mounted.
Iqualitrol HMP-1BC uses single-chip microcomputer technology to control through the touch screen. Driven by a motor and driven by a synchronous belt,
Iqualitrol HMP-1BC has the characteristics of stable rotation, low noise, long life, safety and reliability; the speed of the grinding head and the grinding and polishing disc can be adjusted according to the needs of the user, the pressure can be set by itself, and the sample preparation time can be set by itself to adapt to different conditions.
Self-contained lighting system, easy to take and place samples; self-contained cooling device, which can cool the sample during grinding, so as to prevent the metallographic structure from being damaged due to overheating of the sample. The ideal choice for laboratory metallographic sample preparation equipment.
Technical Specifications:
| Model | HMP-1BC |
| Application | wafers, lenses, glass, and other thin products that are not easy to be mounted |
| Grinding Disc Quantity | 1 |
| Grinding Disc Diameter | 254mm |
| Grinding Disc Speed |
Stepless Speed 100-1000r/min Quick Speed Set 300/500/800/1000r/min |
| Grinding Disc Rotation Direction | Clockwise and Anticlockwise |
| Grinding Power | 1.1KW |
| Polishing Head Rotation Direction | Clockwise |
| Polishing Head Rotation Speed | 0—120r/min |
| Polishing Head Motor | stepping motor 200W |
| Polishing Head Lock Method | Manually Lock |
| Timer | 0-99min |
| Pressure Adjust Method | mechanical adjust (optional electronic adjust) |
| Pressure loading | Center pneumatic pressure loading |
| Pressure range | 0-150N (normally 40-120N) |
| vacuum suction cups diameter | 100mm (support customized) |
| Vacuum parts | Adsorb specimen |
| Air supply | 2 paths separated air supply, pressure stable and higher than 0.6Mpa (optional) |
| Power supply | AC220V 50Hz |
| Total power consumption | 1.8KW |
| Dimension | 475*660*710mm |
| Weight | 80kg |
