| Water Cooling: | To Prevent Damage Due To Overheating Of The Sample Microstructure | Disc Diameter: | Standard φ203mm (support Customized) |
|---|---|---|---|
| Shell: | High-end ABS, Novel Appearance And High-end Atmosphere | Power Supply: | AC220V/50Hz/1Ph, 0.55KW |
| Roate Speed: | 50-1000r/min, Stepless Speed | Roate Direction: | Clockwise And Anti-clockwise |

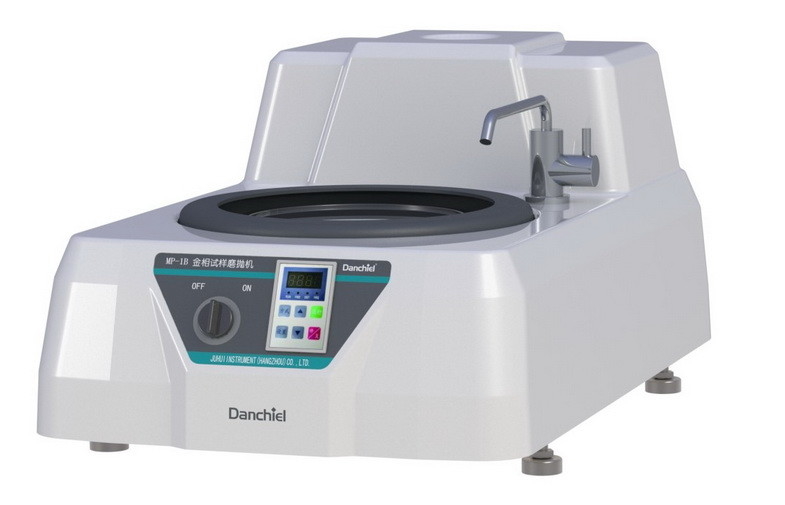

High-end ABS Cover Metallographic Sample Grinding and Polishing Machine MP-1B
Model: MP-1B
Product overview:
The iqualitrol MP-1B metallographic sample grinding and polishing machine adopts frequency converter to adjust the speed, which can make the speed of the grinding and polishing disc stepless adjustable between 50-1000r/min.
The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. The polishing process shows a wider range of applicability.
The shell adopts integral blister, novel appearance, stable rotation, low noise, convenient operation, high working efficiency, etc., and comes with a cooling device, which can cool the sample during grinding and polishing to prevent damage due to overheating of the sample Microstructure.
Main functions and features:
1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.
2. The faucet adopts all-copper chrome plating process, which has good corrosion resistance.
3. Stepless speed regulation, convenient and quick to meet various needs.
4. The grinding and polishing plate can be rotated clockwise or counterclockwise to meet different needs.
Technical parameters:
| Diameter of Grinding Disc | Standard φ203mm (other specifications customized) |
| Rotating Speed of Grinding Disc | 50-1000r/min (stepless speed regulation) |
| Rotation direction of grinding and polishing disc | Forward and reverse |
| power supply | Voltage: 220V Frequency: 50HZ |
| Motor | 0.55KW |
| Appearance size | 730×420×320mm |
| weight | 35Kg |
