| Automatic Focusing: | Automatic Lifting Structure Of Test Anvil | Test Space: | Vertical 250mm * Horizontal 200mm |
|---|---|---|---|
| Vision System: | Real-time Video Measurement, Better Effect, More Accurate And More Stable | Data Process: | Test Results Can Be Displayed Screen, And Support Printing By Built-in Printer |
| Loading Technic: | High Precision Step-controlled Electric Loading Technology, Fast Loading Speed Of Main Test Force And High Efficiency | Force Sensor: | High-precision Sensors Cooperate With Control System, The Loading Speed And Unloading Speed Are Faster And More Accurate |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

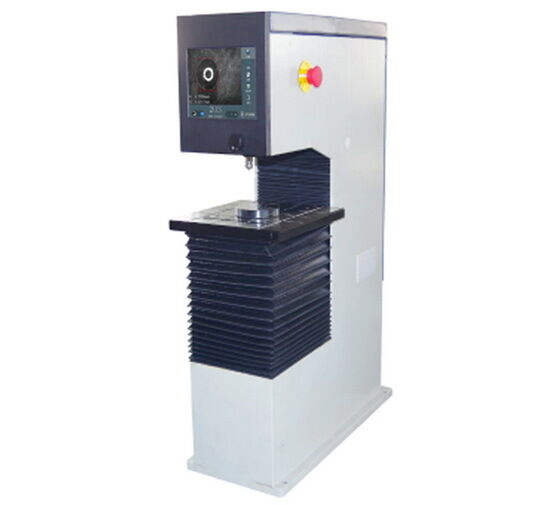

Automatic Focus Visual Brinell Hardness Tester HBS-3000VZ
Brief Introduction:
The iqualitrol automatic focusing visual Brinell hardness tester HBS-3000VZ equips with frame structure design, high precision step-control system and intuitive measurement method.
The machine adopts automatic loading, computer software programming, high-power optical measurement, photoelectric sensor and other systems, and adopts high-precision step control technology to ensure that the load of test force does not overshoot.
By manually fitting the indentation edge, the Brinell hardness is automatically calculated and displayed on the LCD screen.
Vision Chip Technology:
HBS-3000VZ has the embedded vision technology, it embeds the vision directly into the instrument control system, and process and measure the image directly through the motherboard.
Technical Specifications:
| Model: | HBS-3000VZ |
| Brinell scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/125, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500,HBW10/3000 |
| Test force | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
| Scale conversion | HR, HV, HK etc. |
| Minimum measuring unit | 1µm |
| Test force dwell time | 0-60s |
| Objective lens and indenter switching | Automatic |
| Focusing method | Automatic |
| Hardness testing range | 8-650HBW |
| Total magnification | 20X |
| Executive standard | ASTM E10, ISO6506, JJG150-2005, GB/T231 |
| Hardness indication | LCD display |
| Power Supply | AC90-240V, 50-60Hz |
| Maximum height of specimen | 250mm |
| Distance from the center of indenter to body | 200mm |
| Data output | Built-in printer |
| Dimensions | 590*250*835mm |
| Machine net weight | About 300kg |
