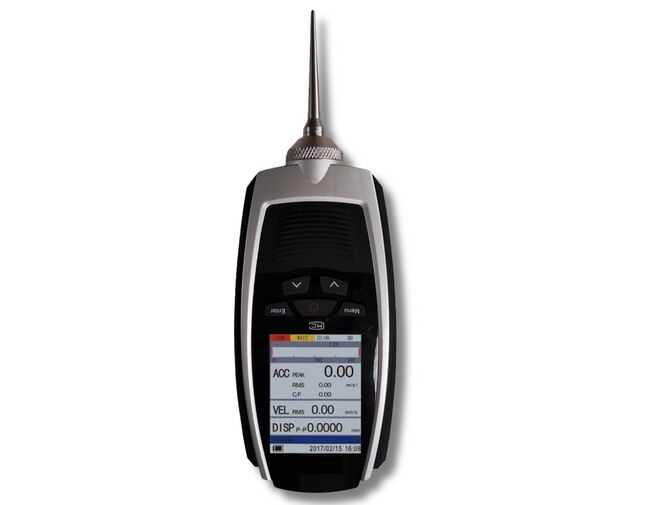

Fast Fourier Transform Integrated Portable Vibration Meter iKV-3000B
Brief Introduction:
Vibration meters measure the velocity and acceleration of industrial machinery by observing its vibration. These meters are used for shock and pulsation checks and preventive maintenance. They evaluate equipment like compressors, turbines, conveyors, motors, and more.
The iqualitrol iKV-3000B is a portable vibration meter used for on-site mechanical vibration measurement and analysis applications.
iKV-3000B uses Fast Fourier Transform (FFT) to transform time-domain signals into frequency-domain signals for analysis, which can quickly determine the cause and location of faults.
This instrument uses an ICP accelerometer to convert vibration signals into electrical signals. By processing and analyzing the input signal, the acceleration peak value, effective value, velocity effective value, and displacement value peak value of vibration measurement are obtained.
iKV-3000B widely used in fields such as mechanical manufacturing, electricity, metallurgy, and vehicles.
Technical Specifications:
| Measurement range | Acceleration: (0.1-392) m/s ² (peak) Speed: (0.01-800) mm/s ² (effective value) Displacement: (0.001-10) mm (peak to peak) |
| Frequency range | Acceleration: 10Hz-10kHz Speed: 10Hz-1kHz Displacement: 10Hz-500Hz |
| Accuracy | Reference sensitivity: ± 2% Linear relative error of amplitude: ± 5% Relative error of frequency response: ± 5% |
| FFT spectrum lines | 200, 400, 800, 1600, 3200 |
| Anti mixing filtering | 5th order low-pass elliptical filter |
| Optional frequency range | 10-200Hz, 10-500Hz, 10-1kHz, 10-2kHz, 10-5kHz, 10-10kHz |
| AD sampling | 12 bits, maximum 25.6k sampling frequency |
| Sampling points | 512, 1024, 2048, 4096, 8192 |
| Window functions | rectangular window, Hanning window, Haining window, flat top window |
| Display mode | 2.4-inch TFT high-definition color screen, 320 * 240 resolution, adjustable backlight brightness |
| Bluetooth | Bluetooth IQUALITROL V5.0 |
| Measurement modes | dedicated mode and spectrum mode |
| Calendar | can display time information and also add dates to the measured data, making it traceable |
| Storage method | Automatic storage, can store 50 point numbers, each point number can store 50 data and a spectrum list |
| Measurement units | metric and imperial can be converted to each other |
| Shutdown mode | manual or automatic options are available |
| Low battery indication | Indicates the current battery status |
| Battery | Two AA rechargeable nickel hydrogen batteries, fully charged, can work continuously for 16 hours |
