Paint Coating Pull off Strength Tester ASTM D7234 Digital Pull off Adhesion Tester
Brief Introduction:

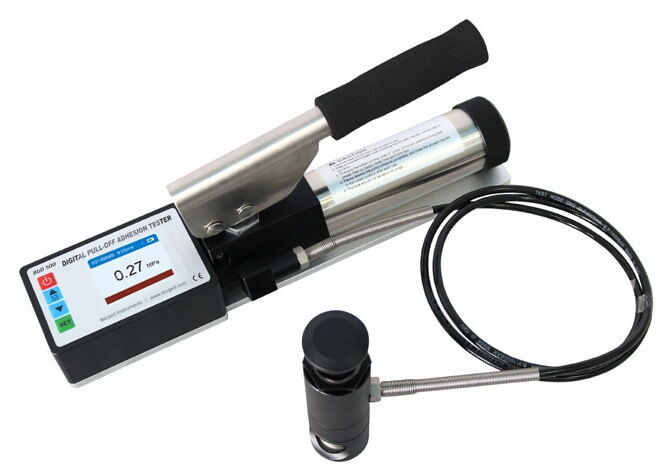

The iqualitrol BGD-500 Digital Pull-off Adhesion Tester is a portable, hand-operated instrument which is used to measure the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure.
The pressure is displayed on a digital LCD and represents the coating’s strength of adhesion to the substrate.
It evaluates the adhesion (pull-off strength) of a coating by determining the greatest tensile pull-off force that it can bear before detaching. Breaking points, demonstrated by fractured surfaces, occur along the weakest plane within the system consisting of dolly, adhesive, coating layers and substrate.
The iqualitrol BGD-500 Digital Pull-off adhesion Tester conforms to ASTM D 4541, ASTM D 7234, EN 13144, EN 12004-1, EN 12004-2, ISO 4624, ISO 16276 etc.
Technical Specifications:
| Dolly Size | 20mm (standard) 10mm, 14mm, 50mm, 50mm×50mm (optional) |
| Resolution | 0.01MPa (1psi) |
| Accuracy | ±1% full scale |
| Max. Pull-off Pressure(MPa) |
2.8-80 (10mm dolly); 1.4-40 (14mm dolly) 0.7-20 (20mm dolly); 0.4-3.3 (50mm dolly); 0.4-2.5 (50mm×50mm square dolly) |
| Size/Weight | 360mm×75mm×115mm/3KG |
| Power | Built-in rechargeable lithium battery, and standard configuration charging adapter. |
| Standard Packing List | Adhesion Tester 20mm Aluminum test dollies (20 pcs) Cutting toll for 20mm dollies 3M Adhesive and glue gun Micro-USB cable Operation Manual Carrying case |
Main Features:
CONVENIENT
1, Portable design, can be used anywhere.
2, Built-in rechargeable lithium battery, no need any external power source.
3, Selectable directly four different sizes dolly for different resolution and testing range
4, Get the testing results from LCD directly.
5, Includes all tools needed for testing
PRECISE
1, Each PsiaTester’s pressure system is calibrated to within 1% accuracy by NIST traceable load cells
2, High-precise professional sensor ensures 0.01MPa resolution
3, Self-aligning dollies ensure to get a reliable testing results for smooth or uneven surfaces.
4, Come with calibration certificate
INTELLIGENT
1, Store all test results (includes Max. pull-off power,pull-off rate, dolly size and time)
2, Two units (MPa and psi)for selection and can be converted automatically.
3, USB interface as standard, no need any software, PsiaTester is also a U disk, when connecting the computer, operator can read all data directly which is recorded during testing.
4, Showing pull-off rate allows users monitor and adjust pull speed according to different test requirements.
DURABLE
1, Dustproof and shockproof design meets any harshest operating environment
2, Strong plastic carrying case
3, One year warranty.
