| Auto Measure: | Automatically Finds The Indentation Circle And Calculates The HB Hardness Value | Magnification: | 0.5-1.6mm (70X), 1-2.0mm (55X), 2-4.0mm (30X), 3-6.0mm (20X) |
|---|---|---|---|
| Camera: | 2MP 1/3" CMOS USB Camera | Accuracy: | ±0.5% |
| Indenters: | Support 1mm, 2.5mm, 5mm, 10mm | Test Force: | 187.5、250、500、750、1000、1500、3000kgf |

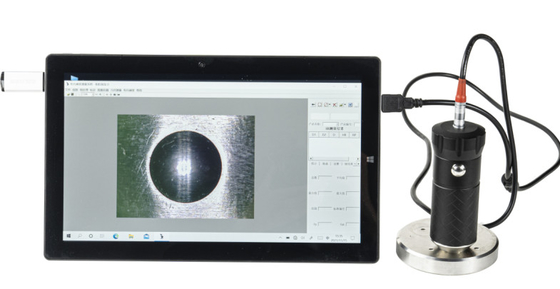

Brinell Measurement Software with HD USB Camera
Indentation Range from 0.8mm to 6mm
Model: JHB-1
Main Technical Specifications:
iqualitrol new generation portable Brinell USB camera with multiple configurable magnifications: 4 magnifications to cover the full measurement range from 0.8mm to 6mm;
OS supported: Windows 7, 8, 10, 11, 32 and 64 bits;
Automatic HB Measurement: Automatically finds the indentation circle and calculates the HB hardness value, accuracy ±0.5%;
Manual correction: Test result can be manually corrected with a simple mouse drag move;
Statistics: Automatically calculates the average hardness and its standard deviation;
Out of bound alert: Automatically marks the hardness data outliers and the out of bound data points;
Data archiving: Test results including measurement data and measurement images can be saved in a file;
Reporting: Test results including measurement data, measurement images can be output to a Word document. User can customize the report template.
