Double Column Servo Tensile Compression Universal Testing Machine with Automatic Correction

China Double Column Servo Tensile Compression Universal Testing Machine with Automatic Correction supplier

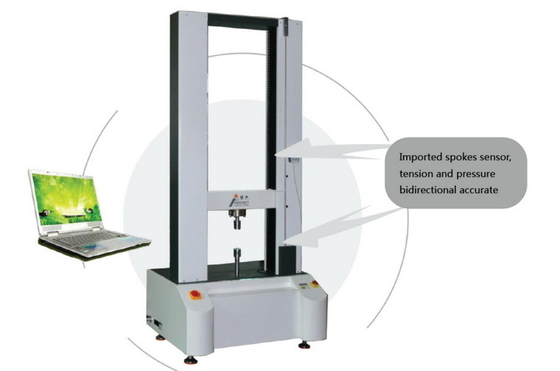

Large Image :  Double Column Servo Tensile Compression Universal Testing Machine with Automatic Correction

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: iPT-1136

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Motor: AC Servo Motor Horizontal: Travel Range Max 400mm
Force Accuracy: ±0.5%(GB/T 16491-2008) Vertical Space: Max 1000mm,include Fixture/grip
Test Speed: 0.5~300mm/min,free Set Capacity: 500、1000、2000、5000kgf, Select One


Double column Computer Servo Tensile Compression Universal Testing Machine


Model: iPT-1136



iqualitrol double pillars iPT-1136 computerized servo pull pressure testing machine is mainly used for testing the mechanical properties of metals, nonmetals, composite materials and products by means of stretching, compression, bending, shearing and tearing.


At the same time, it can be used for testing and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users.


It is widely used in the inspection and analysis of materials in the industries of aerospace, machinery manufacturing, electric wires and cables, rubber plastics, textile, building materials, household appliances, etc.



Key Features :


High Performance

The machine structure adopts the interstitial ball screw and the high stiffness guide column, which improves the load efficiency and the structural rigidity.Adopt full digital ac servo system to ensure high transmission efficiency, smooth transmission, low noise, speed accuracy can be controlled within ±0.2%;


High Precision

Imported high-precision sensor, effective measurement range 0.5% ~ 100%F.S, the comprehensive accuracy is better than 0.085%



Fixture connection standardization, can quickly replace various test fixture;


Highly Intelligent

Professional software intelligent control interface, automatic parameter setting, working state control, data acquisition and processing analysis, results display and print output;


Simple Operation

Click the mouse one-button control, one-button output test report, no need for tedious education and training;




Model iPT-1136
Capacity 500,1000,2000,5000kgf, choose one of them
Software Windows professional software
Force Accuracy ±0.5%(GB/T 16491-2008)
Force Resolution 1/100,000



Deformation Display Accuracy ±0.1%
Test Speed 0.5~300mm/min,free set
Test Travel Max 1000mm,include fixture/grip
Effective Test Space Front back no limit,left right 400mm
Unit Switch A variety of measurement units including international units
Stop Method Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special Function

Tensile holding, compress holding,

tensile fatigue , compression fatigue ( software need updated)

Standard Configuration Standard fixture 1 pair, software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card
Optional parts Business computer , printer , various test grips
Size About 76×50×175cm(W×D×H)
Weight About 350kg
Motor AC servo motor
Power Supply 1PH,AC220V,50/60Hz,10A or as specified



Software specification:


Windows platform, parameter setting all click, simple operation;

Single screen operation, no screen switching

Software interface with simplified Chinese, traditional Chinese and English three languages, easy to switch;

Can test the form mode by itself.

Test data can be directly called in the main screen;

With a variety of units of measurement, the metric system can be switched;

The data of multiple curves can be compared simultaneously.

With automatic return function;

Automatic correction function;

Function of custom test method.

Test data operation and analysis function;

Automatic magnification to achieve the most appropriate size of the graphics;

It can be used for tensile test, compress test, bending test, stripping test, tension test, pressure test and fatigue test.


Professional test software conforms to GB228-87, GB228-2002 ...more than 30 countries’ standard regulations, at the same time, according to GB, ISO, JIS, ASTM, DIN, and provide a variety of standard test and data processing, and good extensible.
