Product Details:
Payment & Shipping Terms:
|
| Model: | MG-1103S | Result: | By Using Computer Software |
|---|---|---|---|
| Test Space: | 420mm * 110mm | Motor: | Stepper Motor Drive |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

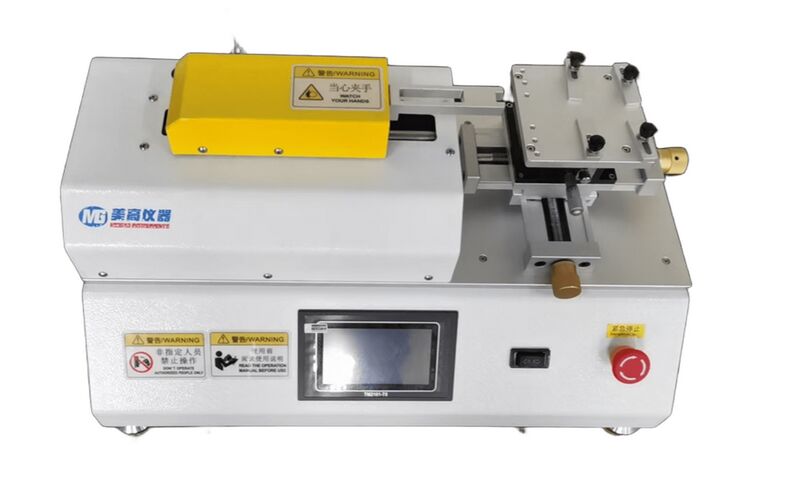

Horizontal Tensile Testing Machine MG-1103S
Conform Testing Standards:
GB/T2792, ASTM D3330, GB2792-81
Application Ranges:
The MG-1103S horizontal testing machine is developed and designed for tape peeling tests. It uses a microcomputer chip for control and can perform tensile and peeling force tests on materials.
It features full computer operation, an automatic reset function, and can connect to a computer to output test graphs and tables as a basis for material testing.
Technical Specifications:
| Capacity | 10N, 20N, 50N, 100N, 200N, choose one as max force |
| Display | By using Computer software |
| Force resolution | 1/500,000 |
| Force accuracy | 0.30% |
| Travel resolution | 1/500,000 |
| Control mode | Computer software |
| Stroke | 420mm |
| Width | 110mm |
| Speed | 0.5～500mm/min |
| Force units | kgf, N, Ibf, g, ton, Mpa |
| Stop modes |
Overload shutdown, emergency stop button, automatic shutdown upon specimen failure, automatic shutdown at upper and lower limit settings, automatic reset function |
| Dimension | 1063 x 300 x 200mm (W×D×H) |
| Motor | Stepper motor drive, synchronous pulley, and precision ball screw transmission |
| Power consumption | 180W |
| Weight | 45kg |
| Power supply | 220V 50/60HZ 3A |
| Standard delivery | Grip, software, USB cable |
