Product Details:
Payment & Shipping Terms:
|
Deformation Accuracy: | Be Better Than±0.5% | Accuracy: | Be Better Than ±1% (GB-1Level Accuracy) |
---|---|---|---|
Capacity: | Select One From 2、5、10、25、50、100、200kgf | Stroke: | Standard 650mm, Optional Extended 1000mm |

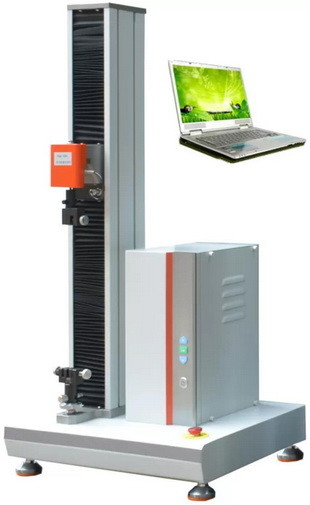

Computerized Tensile Testing Machine for pressure bending
tearing and peeling tests
Model: iPT-1171B
Key Features:
iqualitrol iPT-1171B Computerized Tensile Testing Equipment Pull Strength Testing Machine is for iqualitrol's newly developed a patented product (Patent No. 200730055891.1) for in hardware, rubber plastic, paper products, printing and packaging, adhesive tape, bags handbags, textile, medicine, daily chemical, food, electronic wire, etc. industries.
iqualitrol iPT-1171B can be used in various materials, semi-finished products and finished products, such as tension, pressure, bending, folding, cutting, tearing and peeling tests.
Technical Specifications:
Product Name | Computerized Tensile Testing Equipment Pull Strength Testing Machine For Tape |
Product Model | iPT-1171B |
Capacity Selection |
2, 5, 10, 25, 50, 100, 200kgf |
Measurement and control software | Windows Under the platform |
Accuracy of measurement | Be better than±1%(GB-1Level accuracy) |
Force resolution | 1/200,000 |
Effective range of measurement | 0.5~100%F.S |
Deformation display accuracy | Be better than±0.5% |
Deformation measurement resolution | 0.0001mm |
Test speed range | 10~500mm/min,Can be arbitrarily set |
Test maximum stroke | Maximum 650mm (extended 1000mm, need to be customized), not includeing fixture |
Effective test space | Diameter 120mm range |
Unit Switch | A variety of measurement units, including the international unit |
Stop Mode | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
Power | Stepper motor driver |
Standard Configuration | Standard fixture1,Pay, 1 sets of software and data lines, power supply line 1, CD 1 CD-ROM operating instructions, product certification 1 copies, 1 copies of product warranty card |
Optional Configuration | Business computer desk, color printer 1, all kinds of test fixture |
Machine Size | About 57×47×120cm(W×D×H) |
Machine Weight | about 70kg |
Power Supply | 1PH,AC220V,50Hz,10A Or specify |
Tesnile Testing Equipment Characteristics:
