Product Details:
Payment & Shipping Terms:
|
| Test Space: | Front And Back 120mm,right Left No Limit | Test Speed: | 1～500mm/min, Adjustable |
|---|---|---|---|
| Range: | Test Range Of Capacity 1~100%F.S | Resolution: | Test Force Resolution 1/10,000 |
| Accuracy: | Force Accuracy ±1.0% | Force Capacity: | Select One From 2, 5, 10, 20, 50, 100, 200, 500kgf |

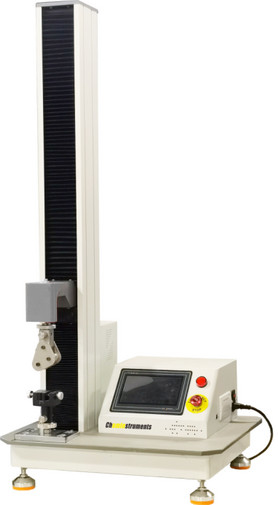

Touch Screen single column tensile testing machine max capacity 5KN Stroke
Model: iPT-1170
Application:
iqualitrol iPT-1170 single-column tensile machine is suitable for hardware, rubber and plastics, paper products, color printing packaging, adhesive tape, luggage and handbags, textiles, medicine, daily chemical, food, wire and electronics industries. It can be used for tensile, pressing, bending, folding, shearing, tearing and peeling tests of various materials, semi-finished products and finished products;
Technical Parameters :
| Model | iPT-1170 | iPT-1170B |
| Force Sensor | 2,5,10,20,50,100,200,500kgf, one option | |
| Display | force and extension display | |
| Force Measure Accuracy | ±1.0% | |
| Force Measure Resolution | 1/10,000 | |
| Effective Measure Range | 1~100%F.S | |
| Deformation Indication Accuracy | ±1.0% | |
| Test Speed | 1～500mm/min | |
| Test Travel | 850mm,exclude grip | |
| Test Space | Front and back 120mm,right left no limit | |
| Force Unit | kgf,gf ,N,kN,Ibf | |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 | |
| Deformation Unit | mm,cm,in | |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing | |
| Snap Point Method | Manually take points during the test and pre-set take points (20 points) | |
| Computer Extension | No | Yes |
| Standard Configuration | 1 pair of grip, 1 micro printer, 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card | 1 pair of grip, 1 micro printer, 1 operating software, 1 software ,1 connection network cable, 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card |
| Size | About 57×47×120cm(W×D×H) | |
| Weight | About 80kg | |
| Motor | Stepper | |
| Power Supply | 1PH,AC220V,50/60Hz,10A | |
