Product Details:
Payment & Shipping Terms:
|
| PS-2205S: | 0-±360°, (Test Space W215*H300) | PS-2205SW: | 0-±360°,(Test Space W400*H560) |
|---|---|---|---|
| Torque Resolution: | 0.00001N.m(1/100000) | Test Speed: | 0.01-360°/s |

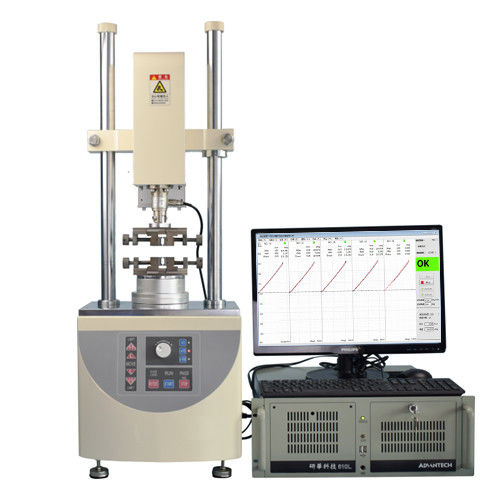

Fully automatic torque testing machine PS-2205S
Brief Introduction:
The iqualitrol torque testing machine is suitable for the measurement of torque and angle of 3C electronic products, hinges, torsion springs, screws, encoder switches, smart wearables, door locks, etc.
In addition to torque testing, it can also perform torque life, strength, damage and other test research at the same time. It is a general-purpose torque testing machine.
Technical Specifications:
| Model | PS-2205S | PS-2205SW |
| Applicable torque capacity | 0.5N.m, 1N.m, 2N.m, 5N.m, 10N.m, 20N.m, 50N.m | |
| Torque resolution | 0.00001N.m(1/100000) | |
| Minimum display torque | 0.01gf.cm | |
| Test angle (space) | 0-±360°,(W215*H300) | 0-±360°,(W400*H560) |
| Torque test accuracy | Within ±0.5%(Sensor accuracy 0.05%, absolute accuracy optional 0.2% or higher) | |
| Maximum test angle | ±36000deg | |
| Angular resolution | 0.1deg | |
| Angle accuracy | ±0.5deg | |
| Test Speed | 0.01-360°/s | |
| Move control | Knob movement 0.01°,0.1°,1°；Operation panel button movement 0.1°,10° | |
| Up and down movable range | 100mm Floating fine-tuning | |
| Data sampling frequency | 100-10000 times/s | |
| Torque Unit | N.m, mN.m, kgf.cm, gf.cm, N.cm | |
| Protection function | 2 times hardware torque overload, software detects overload and stops alarm within 1ms | |
| Power supply | AC220V/500W | |
| Dimension | W360*D340*1000 | W540*D340*1000 |
| Weight | 65kg | 85kg |
Main Function:
1, Torsion-angle test of twisting products can also generate torque-time waveform.
2, Multiple test action modes: forward twist + return, reverse twist + return, forward twist + rotation + reverse twist + return.
3, Test angle 0-±360° unlimited, speed 0.1-21600°/min (small range 0.1-7200°/min).
4, Torque effective resolution 1/100000.
5, Data sampling frequency 100-10000 times/second can be set, and the most suitable test method can be customized.
6, The minimum micro-motion angle is 0.01°, and the handwheel control adjustment is more convenient.
7, Set the number of data storage records to more than 100,000, and directly call out the same product when testing.
8, Test data, waveforms, and results are all stored in the computer, with no limit on the number of times, and all data can be exported and printed.
9, Windows bilingual software in Chinese and English, friendly interface, easy operation, convenient and fast version upgrade.
10, Perfect sensor protection, immediate shutdown alarm when overload is detected, ensuring safe use.
