| PS-2702: | Impact Height 0-50 Cm | PS-2703: | Impact Height 0-100 Cm |
|---|---|---|---|
| Application: | Test The Degree Of Damage To The Paint Film After Impact | Test Process: | A Fixed-weight Hammer Is Dropped At A Certain Height Onto The Test Plate Coated With The Sample To Be Tested |

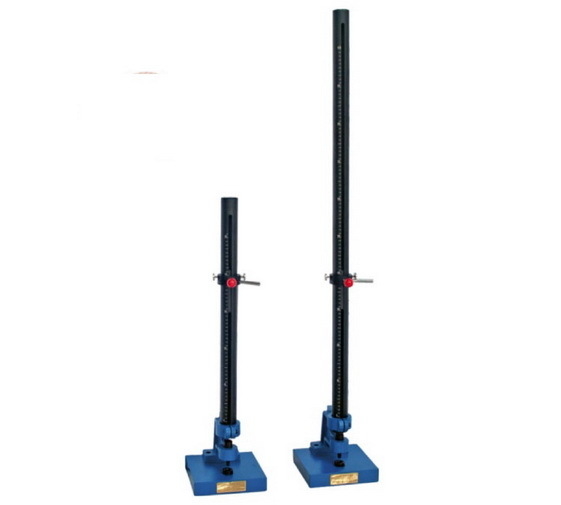

Paint Film Impactor PS-2702
Brief Introduction:
It is mainly used to test the degree of damage to the paint film after impact. It has a simple structure and is easy to operate.
A fixed-weight hammer is dropped at a certain height onto the test plate coated with the sample to be tested.
Testing Standards: GB/T 1732
Technical Specifications:
| Model | PS-2702 | PS-2703 |
| Impact Height | 0-50 cm | 0-100 cm |
| Resolution | 1 cm | 1 cm |
| Impact hammer | 1000 g | 1000 g |
| Impact diameter | 8 mm | 8 mm |
| Base diameter | 15 mm | 15 mm |
| Impact depth | 2 mm | 2 mm |
| Overall Dimension | 20×20×80 cm | 20×20×120 cm |
| Net Weight | 15 kg | 20 kg |
