| Test Force: | Max Test Force 2000KN | Distance: | Compress Plates Distance 300mm |
|---|---|---|---|
| Column Distance: | 260mm | Test Range: | 10%-100%FS |
| Piston Travel: | 50mm | Plate Size: | About 260mm*300mm (up, Down) |

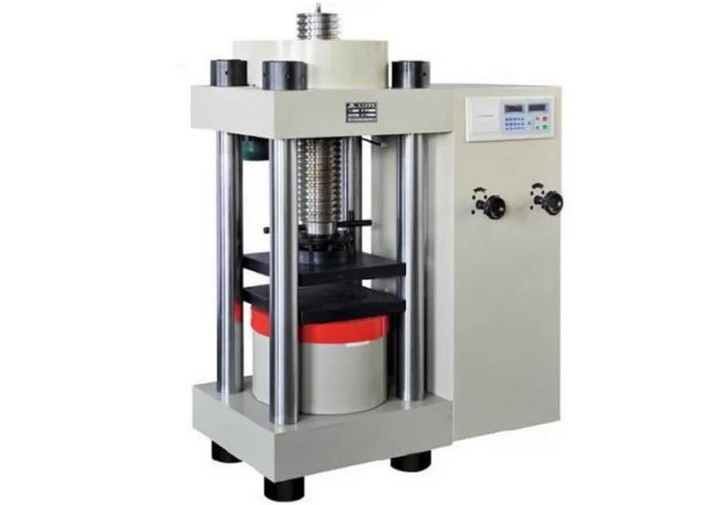

Hydraulic Compressive Strength Testing Machine with Capacity 2000KN
Model: iPT-2000LN
Introduction:
iqualitrol compressive strength testing machine is mainly used for testing the compress strength of concrete, cement products, hollow bricks, refractory materials, engineering materials, stone, rubber bearings and other building materials.
It is the necessary equipment for industrial laboratories in highway, railway, bridge, construction, building materials, colleges and universities, etc.
The structure of the main engine and the hydraulic system is compact and small.The motor drives the lead screw to adjust the compression space, hydraulic loading, electronic force measurement, with loading rate display, peak value maintenance and other functions, and equipped with a micro printer.
Technical Parameters:
| Model | iPT-2000LN |
| Max Test Force | 2000KN |
| Measurement Range | 10%-100%FS |
| Relative Error Of Test Force Indication | ＜ ±1% of indicating value |
| Safety Protection Device | When the test force exceeds 3% of the maximum test force, the overload protection will cause the pump motor to stop |
| Compress Plates Distance | 300mm |
| Piston Travel | 50mm |
| Column Distance | 260mm |
| Compress Plate Size | About 260mm*300mm (up, down) |
| Machine Size | 1000*500*1450mm |
| Motor Capacity | 2KW |
| Voltage | 220V |
| Weight | About 850kg |
Hydraulic System:
The hydraulic oil in the oil tank drives the high pressure pump into the oil channel through the motor, flows through the return oil valve, and enters the oil cylinder.The force measuring instrument collects and analyzes the data through the sensor to display the constant force value. The tester controls the flow through the oil valve to realize the speed of the test force.
Force Measuring System:
Manual adjustment of oil return valve, simple and flexible operation;
Has the maximum load peak maintenance function;
Dynamic display function of loading rate;
Random test report with test date, number, failure load, compress strength, etc
