| Test Space: | Front And Back 120mm,right Left No Limit | Test Speed: | 1～500mm/min |
|---|---|---|---|
| Range: | Test Range Of Capacity 1~100%F.S | Resolution: | Force Resolution 1/10,000 |
| Force: | Force Accuracy ±1.0% | Capacity: | Select One From 2, 5, 10, 20, 50, 100, 200, 500kgf |

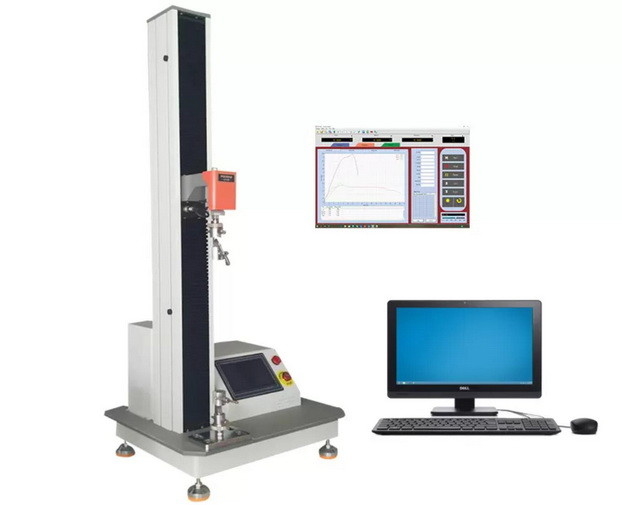

Computer software type single column tensile testing machine max capacity 5KN Stroke 850mm
Model: iPT-1170B
Application:
iqualitrol iPT-1170B single-column tensile machine is suitable for hardware, rubber and plastics, paper products, color printing packaging, adhesive tape, luggage and handbags, textiles, medicine, daily chemical, food, wire and electronics industries.
iqualitrol iPT-1170B can be used for tensile, pressing, bending, folding, shearing, tearing and peeling tests of various materials, semi-finished products and finished products;
Technical Specifications:
| Model | iPT-1170B |
| Force Sensor | 2, 5, 10, 20, 50, 100, 200, 500kgf, one option |
| Display | force and extension display on software |
| Force Measure Accuracy | ±1.0% |
| Force Measure Resolution | 1/10,000 |
| Effective Measure Range | 1~100%F.S |
| Deformation Indication Accuracy | ±1.0% |
| Test Speed | 1～500mm/min |
| Test Travel | 850mm,exclude grip |
| Test Space | Front and back 120mm,right left no limit |
| Force Unit | kgf,gf ,N,kN,Ibf |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformation Unit | mm,cm,in |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing |
| Snap Point Method |
Manually take points during the test and pre-set take points |
| Computer Extension | Yes, support connected to computer |
| Standard Configuration | 1 pair of tensile grip, 1 micro printer,1 software ,1 connection network cable, 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card |
| Size | About 57×47×120cm(W×D×H) |
| Weight | About 80kg |
| Motor | Stepper |
| Power Supply | 1PH,AC220V,50/60Hz,10A |
Interface of iPT-1170B Software:
