Digital Brinell Rockwell Vickers hardness tester with Touch Controller

China Digital Brinell Rockwell Vickers hardness tester with Touch Controller supplier

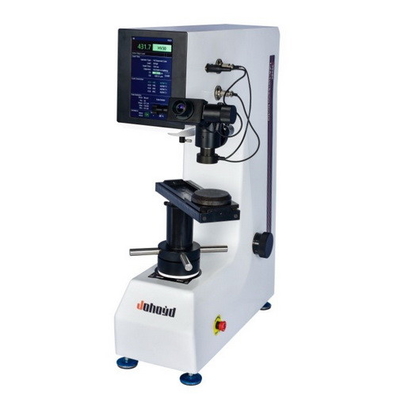

Large Image :  Digital Brinell Rockwell Vickers hardness tester with Touch Controller

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: SHBRV-187.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Test Method: With Brinell, Rockwell, Vickers Three Test Methods Specimen Height: Rockwell 180mm, Vickers/Brinell 165mm
Display: LCD Touch Screen Display Interface Test Force: 13 Test Force, From 5kgf To 187.5kgf
Hardness Reading: Automatic Calculation And Display On Touch Controller Printing: Built-in Micro-printer, And Optional RS232

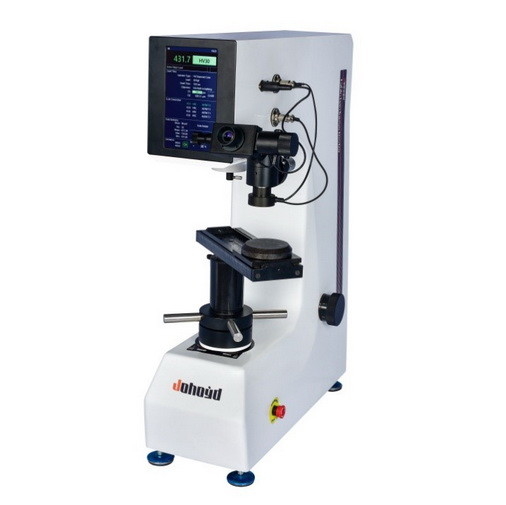

Digital Brinell Rockwell Vickers hardness tester with Touch Controller



Model: SHBRV-187.5



Product description:

Iqualitrol digital display Brinell Rockwell Vickers hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance.



SHBRV-187.5 is a high-tech product integrates light, mechanical engineering and electronic. It can carry three tests of Brinell, Rockwell and Vickers with 13-level test force, can meet a variety of hardness testing needs.



It has the features of high test accuracy, simple operation, high sensitivity, convenient use and stable indication.

Equipped with a built-in printer, and can connect with a computer via RS232 to export measurement reports.



Main features of the instrument

1. Large-screen LCD touch screen display interface, with rich display content and convenient operation;

2, with Brinell, Rockwell, Vickers three test methods, 13 test force, can meet a variety of hardness test requirements;



3. The measured hardness values of each scale are automatically converted;

4. The electronic closed-loop control applies the test force; the test force is automatically applied and removed, and the hardness value is directly displayed;



5, equipped with built-in micro-printer, and optional RS232 data cable to connect with the computer through the terminal mode to export measurement reports;

6. The shell is cast once, the structure is stable and not deformed, and it can work under relatively harsh environment;



7. The surface is treated with automobile paint, which has strong scratching ability and is still bright and new for many years;

8, with a high-definition optical system to make observations clearer and reduce errors.





The main purpose and scope of use of the instrument:

1. Determination of Brinell, Vickers and Rockwell hardness of ferrous, non-ferrous and hard alloys:

2. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;

3. Rockwell hardness of heat-treated materials such as quenching and quenching;

4. Vickers hardness of nitrided layer, ceramics, sheet, foil, electroplated layer, and tiny parts.



Detailed Technical Parameters:

Model SHBRV-187.5
Brinell scales HBW2.5/15.625 HBW2.5/31.25 HBW2.5/62.5 HBW5/125 HBW2.5/187.5
Rockwell scales HRA, HRB, HRC, HRD, HRF, HRG
Vickers scales HV5, HV10, HV20, HV30, HV50, HV100

Test force





Rockwell test force: 60, 100, 150Kgf (588, 980, 1471N)
Brinell test force: 15.625, 31.25, 62.5, 125, 187.5 Kgf (153.2, 306.5, 612.9, 1226, 1839N)
Vickers test force: 5, 10, 20, 30, 50, 100 Kgf (49.03, 98.07, 196.1, 294.2, 490.3, 980.7 N)
Maximum height of specimen Rockwell 180mm, Vickers/Brinell 165mm
Throat depth 160mm
Hardness test range Rockwell: 20-88HRA, 20-100HRB, 20-70HRC; Brinell: 5-650HBW; Vickers: 10-3000HV
Hardness reading Automatic calculation and display on touch controller
power supply AC220+5%, 50~60Hz
Dimensions 550*230*780mm
Net weight About 100kg
