Automatic Metallographic Sample Mounting Press ZXQ-1S 115mm Height

China Automatic Metallographic Sample Mounting Press ZXQ-1S 115mm Height supplier

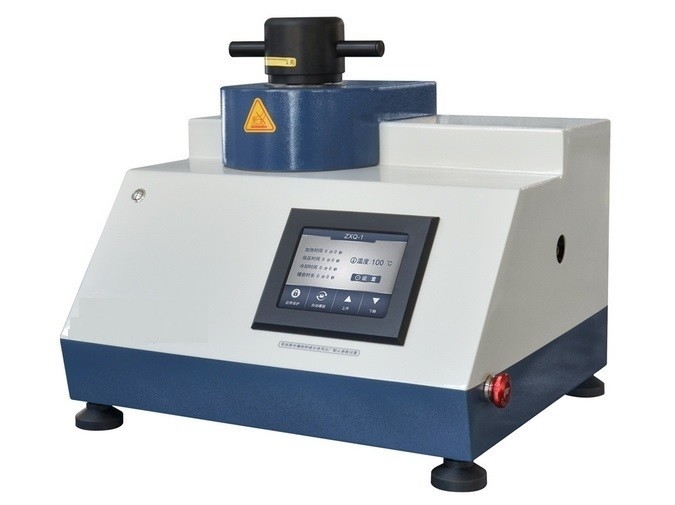

Large Image :  Automatic Metallographic Sample Mounting Press ZXQ-1S 115mm Height

Product Details:

Brand Name: iqualitrol
Model Number: ZXQ-1S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: ZXQ-1S Diameter: Ф25mm,Ф30mm,Ф40mm (Choose One)
Height: 115mm, Effective 60mm Pressure: Mechanical Pressure, 130bar
Heating Temp: 50~180℃ Cooling Time: 0~8min



iqualitrol Automatic Metallographic Mounting Press ZXQ-1S



Technical Data Download: iqualitrol Automatic Metallographic Mounting Press ZXQ-1S



Introduction:

The mounting process ZXQ-1S is controlled by the program, which realizes the one-key operation of heating, loading, dwell, cooling and unloading process.



The sample mounting is automatically completed with sound and light alarm function, without the need of the operator on duty. The machine adopts gear motor with stable pressure, and the water cooling system makes sample preparation fast.



Technical Parameters:

Model ZXQ-1S
Mould Diameter Ф25mm,Ф30mm,Ф40mm (Choose one)
Cavity Height 115mm, effective 60mm
Heating Power Ф25mm/Ф30mm 1.2W; Ф40mm 1.6kW
Pressure Mechanical pressure, 130bar
Electromotor Power 120W
Heating Temperature 50~180℃
Heating Time 0~8min
Dwell Time 30s~60min
Cooling Time 0~8min
Cooling Method External water source cooling
Power Supply 220V, 50Hz,10A
Dimensions 463×402×430mm
Net Weight 50kg
