Water Cooling Automatic Sample Mounting Press Hydraulic Pressure Program Controlled

China Water Cooling Automatic Sample Mounting Press Hydraulic Pressure Program Controlled supplier

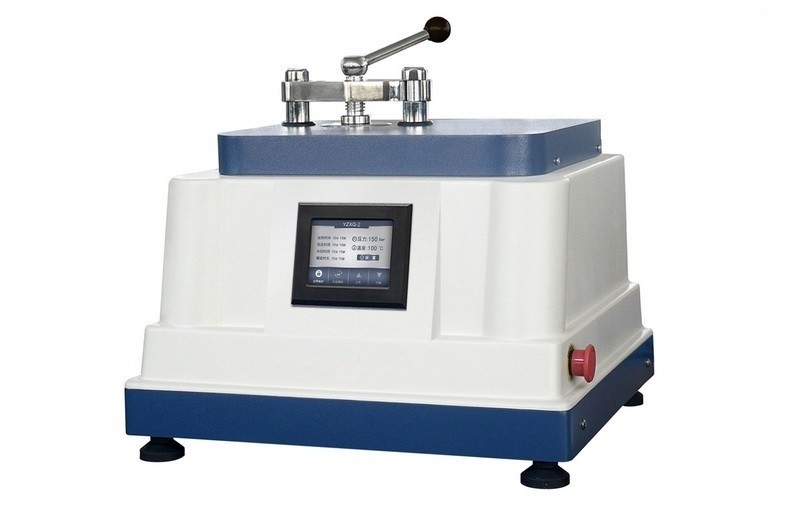

Large Image :  Water Cooling Automatic Sample Mounting Press Hydraulic Pressure Program Controlled

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: iZXQ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: IZXQ-2 Pressure: 150bar (equivalent To 15Mpa, 150kgf/cm2, Adjustable)
Cooling: External Water Source Cooling System Mounting Process: Controlled By The Program, Realizes One-key Operation
Display: High-definition Touch Screen Displays Pressure And Temperature In Real Time Locking: Special Rotary Locking Design Makes Operation More Convenient


Hydraulic Pressure iqualitrol iZXQ-2 Water Cooling Automatic Sample Mounting Press



Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation.


Model iqualitrol iZXQ-2 is an advanced hydraulic water-cooling automatic sample mounting press. The mounting process is controlled by the program, which realizes the one-key operation of heating, loading, dwell, cooling and unloading process.


The sample mounting is automatically completed with sound and light alarm function, without the in need of the operator on duty.


The machine adopts hydraulic pump with higher pressure, which makes the sample more compact. Unique cold and heat separation design makes it much safe and stable.


High-definition touch screen displays pressure and temperature in real time.


The water cooling system makes sample preparation fast and the special rotary locking design makes operation more convenient. With stable and reliable performance, it is the ideal equipment for sample mounting.


Technical Parameters:

Model iZXQ-2
Mould Diameter Ф25mm, Ф30mm, Ф40mm (Choose one)
Cavity Height 108mm, effective 60mm
Heating Power Ф25mm/Ф30mm 1.8kW; Ф40mm 2.4kW
Pressure 150bar (equivalent to 15Mpa, 150kgf/cm2, adjustable)
Heating Temperature 0~255℃
Hold Time 0~99min
Total Time 6min 30s for Ф30mm
Cooling Method External water source cooling
Power Supply AC220V, 50Hz,10A
Dimensions 520*480*520mm
Net Weight 60Kg

Packing List:

Name Specification Qty
Machine Body   1 set
Rotary Handle   1 pc
Upper Mould Block   1 pc
Pump Breathing Cap   1 pc
Water Inlet Pipe   1 pc
Water Outlet Pipe Ф10mm 1 pc
Water Inlet Filter Screen   1 pc
Hoop   1 pc
Bakelite Powder 500g 1 bottle
Measuring Cup   1 pc
Funnel   1 pc
Usage Instruction Manual   1 copy
