Model: | QST2-1000S | Hanging Basket: | 1250*1000*800 (WxHxD)mm |
---|---|---|---|
High Temp Chamber: | 1450*1200*1250 (WxHxD)mm | Low Temp Chamber: | 1450*1200*1450 (WxHxD)mm |
Overall Size: | 3650*2350*2150 (WxHxD)mm, (The Final Product Shall Prevail) | Temp Shock Range: | -50~150℃ |

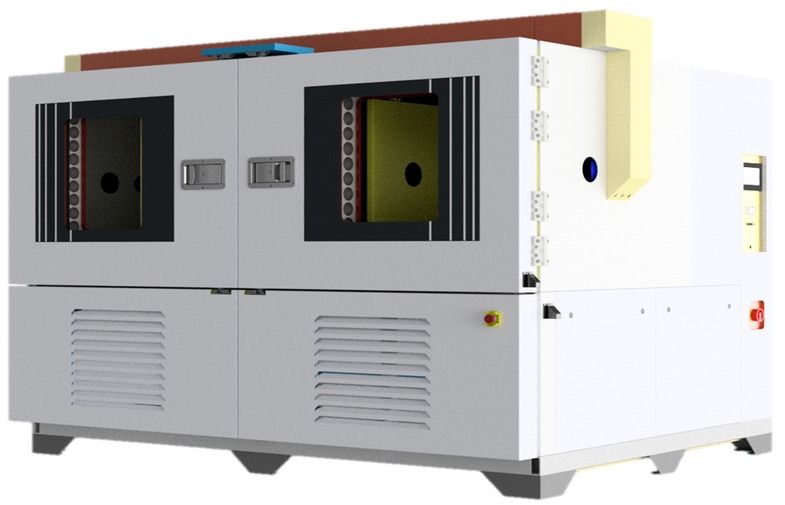

Two Chambers Moveable Thermal Shock Test Chamber QST2-1000S
Technical Specifications:
Name Model Hanging Basket size High Temp size Low Temp Size Overall size
Temp Shock Range |
Thermal Shock Test Chamber QST2-1000S 1250X1000X800(WxHxD)mm
1450X1200X1250(WxHxD)mm 1450X1200X1450(WxHxD)mm 3650X2350X2150(WxHxD)mm(The final product shall prevail)
-50~150℃ |
Test Method |
The basket moves parallel to the left and right, and the sample moves with the basket |
|
This test equipment prohibits: Testing or storing samples of flammable, explosive, and volatile substances Testing or storing samples of corrosive substances Testing or storing samples of biological substances Testing or storing samples of strong electromagnetic radiation sources Testing and storing samples of radioactive substances Testing and storing samples of highly toxic substances Testing and storing samples that may produce highly toxic substances during testing or storage |
Performance indicators |
|
Test environment conditions |
The ambient temperature is +23℃, the relative humidity is ≤85%, and there is no sample in the test chamber (unless otherwise specified) |
|
GB/T 5170.2-2008 Temperature test equipment |
|
Max Temp:+150℃ |
Heating Time:Room Temp→+150℃ ≤35min |
|
|
Min Temp:-65℃ Cooling time: Room temp→-65℃≤70min |
|
Exposure high temperature range:RT+20~+150℃ |
Exposure low temperature range:-50℃~-20 |
|
Temperature fluctuation:1.0℃ (If expressed according to GB/T5170.2-1996, it is ±0.5℃) |
|
Temperature deviation: ±3.50℃ (>+150℃) |
|
|
⑴ temp recovery time:≤5min (2) temp transfer time:≤30s |
recovery condition: High temperature exposure: +80℃ 30min Low temperature exposure: -50℃ 30min Specimen weight: 150kg AL |
|
|
● Sensor location: Upwind side of the sample ● water cooling +28℃ ● power supply according to requested |
Noise |
≤75dB(A)The noise value is measured at 1m from the front of the device and 1m above the ground (in free space). |
|
GB/T 2423.1-2008 Low temperature test method Test Ab GB/T 2423.2-2008 High temperature test method Test Bb GB/T 2423.22-2002 Temperature change test method Test Na GJB 150.3-1986 High temperature test GJB 150.4-1986 Low temperature test GJB 150.5-1986 Temperature shock test (For load, refer to 5.6.⑵, no active heat load) |
|
|
|
⑴ Wall material: stainless steel plate 304 thickness 1.5mm, ⑵ Inner wall hanging basket material: stainless steel plate SUS304 thickness 1.5mm (3)Box insulation material: hard polyurethane foam + glass fiber (4) Door insulation material: glass fiber |
|
2 sets of upper and lower buckle doors |
|
Φ100mm×100mm oblong hole, 2 on the left side of the box |
color |
Beige |
|
Adjustment feet: 16, used to support the test box |
Heater |
⑴High temperature box: nickel-chromium alloy electric heating wire heater 12.5kW×6 ⑵Low temperature box: nickel-chromium alloy electric heating wire heater 6kW×3 |
⑶ Heater control mode: contactless equicyclic pulse width modulation, SSR (solid state relay) |
|
Loop fan |
High temperature exposure: Centrifugal 3φ 2.5KW 2 units Low temperature exposure: Centrifugal 3φ 2.5KW 2 units |
|
Cylinder drive device and test area door lock device (pneumatic drive) Cylinder: ● High and low temperature one set |
