Eyepiece: | WF10×/22mm | Objective: | Infinity Plan 5X, 10X, 20X, 50X |
---|---|---|---|
Trinocular Head: | Inclined 30°, Interpupilary Distance: 48-76mm | Nosepiece: | Quintuple |
Mechanical Stage: | Three Layers, Stage Size: 210 Mm×180mm | Focusing: | Coaxial Coarse And Fine Focus |
Highlight: | inverted metallurgical microscope,stereo inspection microscope |

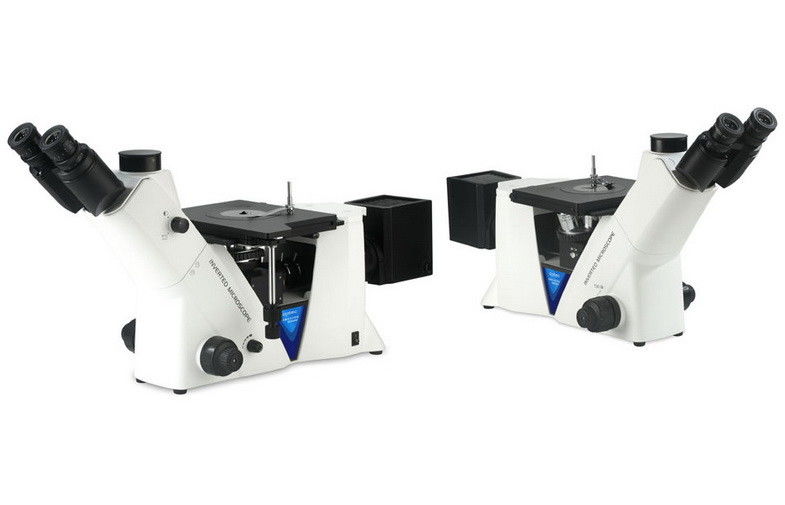

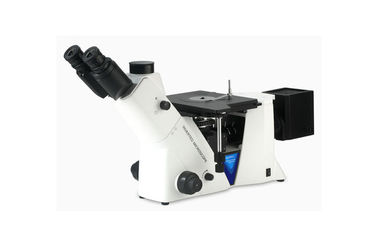

Trinocular Quintuple Inverted Metallurgical Microscope with Infinity Plan Objective
Inverted Metallurgical Microscope iMet-Y400 series are widely used in observation & analysis of metallurgical organization in mechanical industry, research of geological & mineral department and viewing and measuring crystal, integrate circuit, micro-electronics etc. in electronic industry. It is the best choice of factories, academies, scientific research organization and electronic industrial.
Technical Specifications:
Item | Specification | iMet-Y400 | iMet-Y400BD |
Eyepiece | WF10×/22mm (adjustable) | ■ | ■ |
WF10×/22mm (adjustable, reticule 0.1mm) | ■ | ■ | |
Metallurgical LWD Infinity Plan Objectives |
LPL 5×/0.13 W.D=24.23mm | ■ | □ |
LPL 10×/0.25 W.D.= 18.48mm | ■ | □ | |
LPL 20×/0.40 W.D.= 8.35mm | ■ | □ | |
LPL 50×/0.70(S) W.D.= 1.95mm | ■ | □ | |
LPL 40×/0.65 W.D.= 3.90mm | □ | □ | |
LPL 80×/0.80(S) W.D.= 0.85mm | □ | □ | |
LPL 100×/0.90(S) W.D.= 1.00mm | □ | □ | |
Metallurgical LWD Infinity Plan Objectives for |
M PLAN 5×/0.13 BD W.D=24.23mm | ■ | |
M PLAN 10×/0.25 BD W.D.= 18.48mm | ■ | ||
M PLAN 20×/0.40 BD W.D.= 8.35mm | ■ | ||
M PLAN 50×/0.70 BD W.D.= 1.95mm | ■ | ||
M PLAN 80×/0.80 BD W.D.= 0.85mm | □ | ||
Seidentopf Trinocular Head |
Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0 (100% for eyepiece) 80:20 (80% for trinocular head,and 20% for eyepiece) |
■ | ■ |
Nosepiece | Quintuple | ■ | |
Quadplex (specially for bright /dark field objectives) | ■ | ||
Mechanical Stage | Three layers, Stage size: 210 mm×180mm, Moving range:50×50mm , Scale: 0.1mm |
■ | ■ |
Coaxial Coarse and Fine Focusing unit |
Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2μm. |
■ | ■ |
Polarizing Unit | Polarizer/Analyzer | ■ | ■ |
Illumination | 12V/50W Halogen (Input voltage:100V~240V) | ■ | ■ |
Filter | Blue | ■ | ■ |
Green, Amber, Grey | □ | □ | |
C-mount | 1×C-Mount | □ | □ |
0.5× C-Mount (focus adjustable) | □ | □ | |
Note: "■"In Table Is Standard outfits, "□" Is Optional Accessories. Packing Size: 660mm×590mm×325mm, Gross Weight: 17 kg, Net Weight: 12.5 kg |
