Eyepiece: | Wide Field WF10X(Dia 18mm) | Objective: | 5X, 10X, 20X, 40X, 80X |
---|---|---|---|
Focus: | Coaxial Coarse/Fine Focus System | Stage: | Stage Size: 250mm X 230mm |
Light: | 6V 20W Halogen Lamp | EyePiece Tube: | Trinocular, Inclination Of 30° |
Highlight: | inverted metallurgical microscope,stereo dissecting microscope |

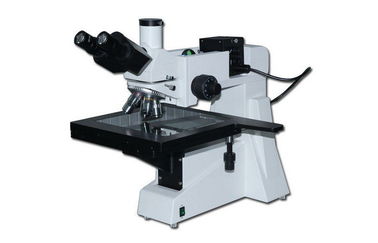

Polarizer Reflected Digital Metallurgical Microscope with Halogen Lamp and Large Stage
Brief Introduction:
iMet-222 reflected metallurgical microscope is suitable to observe the microscopical surfaces of non-transparent object.
iMet-222 equips with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular, and has clear and high-contrast picture beautiful sculpt, convenient control.
iMet-222 is the ideal instrument in research work in metallography, mineralogy, precision engineering and electronics suitable for scientific research, teaching demonstration in the colleges and factory.
Features:
1, With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2, With large move range mechanical stages, can move quickly and slowly.
3, Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
4, 6V 20W Halogen lamp, brightness control.
5, Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.
Technical Specifications:
Model | iMet-222 | iMet-222A |
Eyepiece | Wide field WF10X(Dia.18mm) | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 | |
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | ||
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80 | ||
Eyepieces tube | Trinocular, Inclination of 30°, (Analyzer with field diaphragm to switch) | |
Vertical illumination unit | 6V 20w, halogen lamp, adjustable brightness | |
Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter | ||
Focus system | Vertical adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing 2um. | |
Nosepiece | Quintuple(Frontward ball bearing inner locating) | |
Stage |
Three layer mechanical Size:250mmX230mm, movingrange:154mmX154mm |
Three layer mechanical Size:280mmX270mm, movingrange:204mmX204mm |
Optional Accessories:
Name | Sort/Technique parameter | NO. |
Eyepiece | Wide field WF16X(Dia.11mm) | 1051016 |
Dividing 10X(Dia.18mm) 0.1mm/Div | 1021010 | |
Objective |
Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 |
2250150 |
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) | 2250160 | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | 2250111 | |
Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) |
2240111 | |
CCD adapter | 0.4X | 810001 |
0.5X | 810004 | |
1X | 810002 | |
0.5X with dividing 0.1mm/Div | 810003 | |
Camera | DV-1 With USB & video output | 800001 |
DV-2 With USB output | 800003 | |
DV-3 With video output | 800005 | |
Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
4X Focusing photograph attachment | 840002 | |
MD Adapter | 840003 | |
PK Adapter | 840004 | |
Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
