| IMS-300: | Infinity Plan Objectives | IMS-300D: | Plan Objectives For Bright & Dark Field |
|---|---|---|---|
| Eyepiece: | WF10×／22mm (adjustable) | Stage: | Moving Range: 50×50mm, Scale: 0.1mm |
| Illumination: | 12V/50W Halogen | Focusing: | Coaxial Coarse And Fine Focusing Unit |

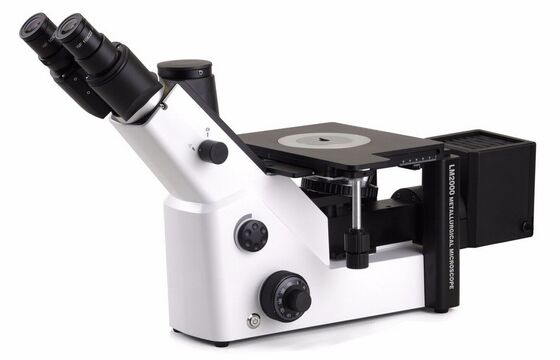

Trinocular Inverted Metallurgical Microscope IMS-300 with Large Working Stage 210*180mm
Brief Introduction:
The iqualitrol IMS-300 Metallurgical Microscope combines with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.
● Dark field objective, Make observation in dark & bright field.
● Oversized field of view eyepiece, view field up to 22mm for comfortable observation.
● Oversized three-layer working stage, more choice for samples.
Technical Specifications:
| Item | Specifications | IMS-300 | IMS-300D | |
| Eyepiece | WF10×／22mm(adjustable) | ● | ● | |
| WF10×／22mm(adjustable, reticule 0.1mm) | ● | ● | ||
|
Metallurgical LWD Infinity Plan Objectives |
LPL 5×／0.13 | W.D=16.04mm | ● | ○ |
| LPL 10×／0.25 | W.D.= 18.48mm | ● | ○ | |
| LPL 20×／0.40 | W.D.= 8.35mm | ● | ○ | |
| LPL 50×／0.70 | W.D.= 1.95mm | ● | ○ | |
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | ○ | |
| LPL 100×／0.90(Dry) | W.D.= 1.10mm | ○ | ○ | |
|
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field |
M PLAN 5×／0.13 BD | W.D=16.04mm | ● | |
| M PLAN 10×／0.25 BD | W.D.= 18.48mm | ● | ||
| M PLAN 20×／0.40 BD | W.D.= 8.35mm | ● | ||
| M PLAN 50×／0.70 BD | W.D.= 1.95mm | ● | ||
| Trinocular Head |
Inclined 30°, interpupillary distance: 48-76mm Light distribution (both):100: 0(100% for eyepiece) 80:20(80% for trinocular head, and 20% for eyepiece) |
● | ● | |
| Nosepiece | Quintuple | ● | ||
| Quadplex (specially for bright /dark field objectives) | ● | |||
| Mechanical Stage | Stage size: 210×180mm, Moving range: 50×50mm , Scale : 0.1mm | ● | ● | |
| Coaxial Coarse and Fine Focusing unit |
Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2μm. |
● | ● | |
| Polarizing Unit | Polarizer /Analyzer | ● | ● | |
| Illumination | 12V/50W Halogen(Input voltage: 100V～240V) | ● | ● | |
| 5W LED lamp (Input voltage: 100V～240V) | c | |||
| 10W LED lamp Dc input (universal voltage: 100V~240V) | ○ | |||
| Auto power on-off system | Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching | ○ | ○ | |
| Filter | Blue | ● | ● | |
| Green/ Amber/ Grey | ○ | ○ | ||
| C-mount | 1×/0.75×/0.5×C-Mount (focus adjustable) | ○ | ○ | |
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 660×590×325mm, Gross Weight: 17 kgs, Net Weight: 12.5 kgs
Technical Specifications of Objective Lens:
| Objective | N.A. |
Working Distance (mm) |
IMS-300 | IMS-300D | |
|
Metallurgical LWD Infinity Plan Objectives |
LPL 5× | 0.13 | 16.04 | ● | |
| LPL 10× | 0.25 | 18.48 | ● | ||
| LPL 20× | 0.40 | 8.35 | ● | ||
| LPL 50× | 0.70 | 1.95 | ● | ||
| LPL 80× | 0.80 | 0.85 | ○ | ||
| LPL100×(Dry) | 0.90 | 1.10 | ○ | ||
|
Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field |
M PLAN 5× BD | 0.13 | 16.04 | ● | |
| M PLAN 10× BD | 0.25 | 18.48 | ● | ||
| M PLAN 20× BD | 0.40 | 8.35 | ● | ||
| M PLAN 50× BD | 0.70 | 1.95 | ● |
Objective specifications: ( "●" Is Standard outfits, "○" Is Optional Accessories.)
