|Temperature:||Range -40℃ ~ +150℃||Dimension:||Internal 416L, 70 X 85 X 70cm|
|Heating Rate:||5℃ ~ 20℃/min (Optional)||Insulation Material:||Rigid Polyurethane Foam|
|Temp Cycling:||Linearity Or Average||Interior Material:||Stainless Steel SUS#304|
thermal cycling chamber,
thermal cycling test equipment

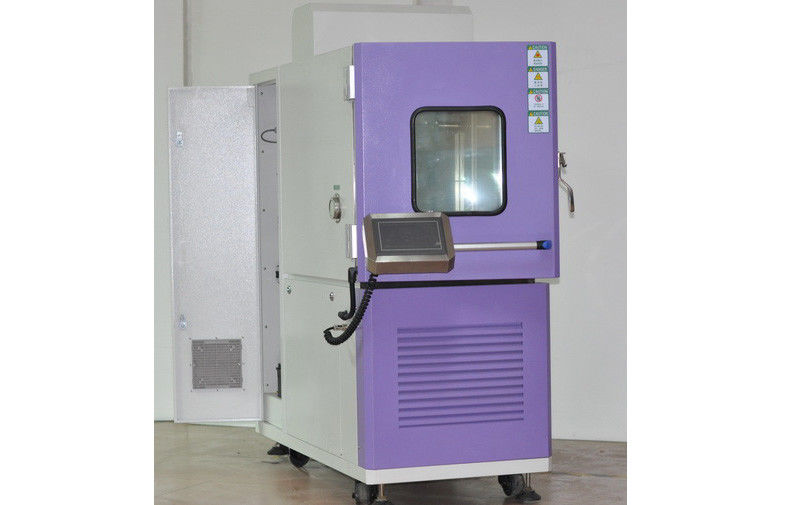

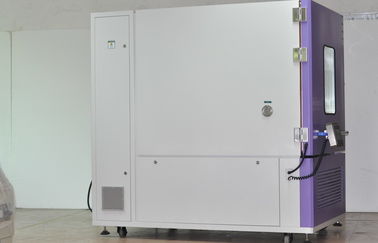

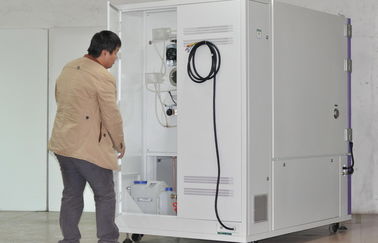

High Low Rapid Change Temperature Cycling Climatic Chamber for Accelerated Stress Test
Rapid change temperature testing specifies a test sample temperature variation rate of 15°C/minute or less, which is the biggest difference between this method and thermal shock testing. Since rapid change temperature testing achieves highly repeatable test results, it is used for compliance testing for standards such as JEDEC (JESD 22-A104B).
With the ongoing rise in issues affecting the reliability of electronic devices and circuit boards, a better-suited evaluation testing method is needed to respond to issues such as higher device operation temperatures resulting from greater semiconductor integration, changes in device mounting methods such as BGA and CSP, and the use of lead-free solder.
Rapid change temperature testing is a type of thermal cycling tests developed to improve the failure repeatability of thermal shock tests.
CHOOSING CHAMBER SIZE
Choosing the size of your chamber is based on 3 critical factors
Application test requirements
Load size and density
Test room conditions
Chambers are used in a wide variety of applications and come in many sizes. The most common volumes produced by chamber manufacturers range in size from small units of 0.5 to 64 cubic feet (14 to 1,812 liters) to walk-in rooms averaging 1,123 cubic feet (31,789 liters), or even drive-in units that fit as many as six cars.
1, Available internal chamber volumes: 150L, 225L, 416L, 800L and 1000L;
2, To preset different heating and cooling rate: 5℃/min, 10℃/min, 15℃/min;
3, Support rapid change temperature test, condensation test, high temperature/humidity test, temperature/humidity loop test, etc.
4, Complete real time curve display;
5, Conform but not limited standards: MIL-STD-2164, MIL-344A-4-16, GJB-1032-90, GJB/Z34-5.1.6, etc.
|Model||Temp Range||Internal Dimension(mm)||Exterior Dimension (mm)|
|QTH-150KB||-20℃～﹢150℃||500 x 600 x 500||800 x 1450 x 1120|
|QTH-225KB||500 x 750 x 600||800 x 1620 x 1320|
|QTH-416KB||700 x 850 x 700||980 x 1860 x 1600|
|QTH-800KB||1000 x 1000 x 800||1350 x 1980 x 1700|
|QTH-1000KB||1000 x 1000 x 1000||1350 x 1980 x 1800|
|QTH-150KC||-40℃～﹢150℃||500 x 600 x 500||800 x 1450 x 1120|
|QTH-225KC||500 x 750 x 600||800 x 1620 x 1320|
|QTH-416KC||700 x 850 x 700||980 x 1860 x 1600|
|QTH-800KC||1000 x 1000 x 800||1350 x 1980 x 1700|
|QTH-1000KC||1000 x 1000 x 1000||1350 x 1980 x 1800|
|QTH-150KD||-70℃～﹢150℃||500 x 600 x 500||800 x 1450 x 1120|
|QTH-225KD||500 x 750 x 600||800 x 1620 x 1320|
|QTH-416KD||700 x 850 x 700||980 x 1860 x 1600|
|QTH-800KD||1000 x 1000 x 800||1350 x 1980 x 1700|
|QTH-1000KD||1000 x 1000 x 1000||1350 x 1980 x 1800|
|Heating/Cooling Rate||3℃/min, 5℃/min, 10℃/min, 15℃/min, 20℃/min (optional)|
|Temperature slope||Linearity or Average|

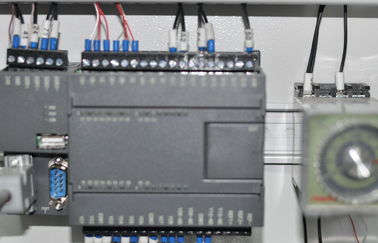

|Control system||Large LCD touch screen controller, data can be displayed directly|
|Inner materials||SUS#304 Stainless steel|
|Outer materials||Cold rolled steel sheet powder baking paint|
|Insulation material||Rigid polyurethane foam|
1, Cooling system (No consumables, suitable for long-term high frequency test)
2, Liquid nitrogen assist in cooling (Liquid nitrogen is a material used for short and low frequency test)
|Safety devices||Electric leakage protection , Short circuit protection, Overheat protection ,Water shortage protection , Dry burn protection switch alarm device|
|Power Supply||AC220/380V, 50/60HZ,|
|Note||1, The performance values are no specimen inside the test area.
2, At 20ºC ambient temperature, relative humidity 65%RH, rated voltage
