Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller

China Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller supplier
Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller supplier Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller supplier Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller supplier Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller supplier

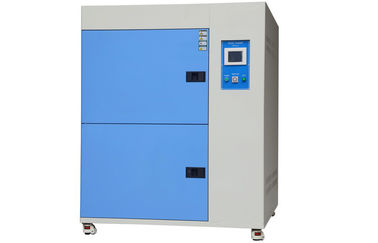

Large Image :  Basket Type 2 Zones Climatic Thermal Shock Test Chamber with Touch Controller

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: QTS2-40B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: T/T
Supply Ability: 5 Sets per Month
Detailed Product Description
Test Area: 200×130×200mm Cold Cabinet: 400×500×400mm
Hot Cabinet: 400×400×400mm Load Weight: 2.5Kg
High Temp: 60℃~200℃ Low Temp.: 60℃~-10℃
High Light:

thermal shock chamber

,

shock test machine


Basket Type 2 Zones Climatic Temperature Thermal Shock Test Chamber with Touch Controller

Q1-Test Two-zone Thermal Shock Test Chamber QTS2 Series consists of two separately controlled hot and cold cabinets. Testing samples are transferred between the two cabinets for rapid temperature changes. These thermal shock test chambers are ideal for testing small components/assemblies to help find product flaws before leave factory.

Features:


1, Vertical-lift thermal shock test chamber with separate hot and cold temperature cabinets

2, Direct-drive system for reliable transfer between cabinets (maximum load 5Kg)

3, Compact design with integrated mechanical refrigeration

4, Exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.

5, Tube for cables to test load, 2" diameter

6, Includes caster and leveling pads for easy movement

7, Designed for performance with maximum load (lighter loads need additional mass for proper performance)

8, Built-in timer functions allow the chamber to be started or shut down automatically

9, RS-232 communication port is standard

Testing Standards:


MIL-STD-883E
MIL-STD-202G
JIS C 0025
IEC 61300-2-47
JEDEC JESD47E
JESD22-A104
GB/T 2423.22-2012
SJ/T10186-91Y73

Specifications:



Model QTS2-40B QTS2-55B QT2-40C QT2-55C

Test Area
(W× H ×D)

200×130×200mm
7.8”×5.1”×7.8”

350×280×350mm
13.8”×11.0”×13.8”

200×130×200mm
7.8”×5.1”×7.8”

350×280×350mm
13.8”×11.0”×13.8”

Cold Cabinet
(W× H ×D)

400×500×400mm
15.7”×19.7”×15.7”

550×650×550mm
21.6”×25.6”×21.6”

400×500×400mm
15.7”×19.7”×15.7”

550×650×550mm
21.6”×25.6”×21.6”

Hot Cabinet
(W× H ×D)

400×400×400mm
15.7”×15.7”×15.7”

550×550×550mm
21.6”×21.6”×21.6”

400×400×400mm
15.7”×15.7”×15.7”

550×550×550mm
21.6”×21.6”×21.6”

Load Resistance 2.5Kg 5.0Kg 2.5Kg 5.0Kg
Pre-heat Time 40min 40min 40min 40min
Pre-cool Time 70min 80min 80min 90min
High Temp. Exposure Range 60℃~200℃ 60℃~200℃ 60℃~200℃ 60℃~200℃
Low Temp. Exposure Range A=-40℃~-10℃ B=-60℃~-10℃




Specimen Transfer Time In 10 seconds Temp. Accuracy ±2℃

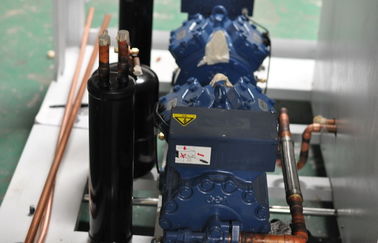

Refrigeration Cascade Refrigeration System Control Mode PID + SSR
Exterior material stainless steel with baking paint Interior material rust-proof treatment, galvanized Steel Plate
Cooling Method Water/Air Refrigerant Environmental Friendly Refrigerant
Security System Overheat Protector, Compressor overload protector, Controller protector, Motor overload protector
