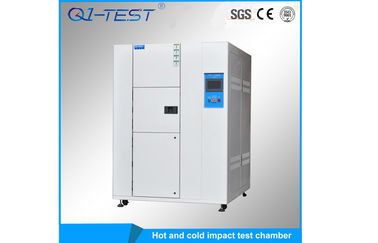

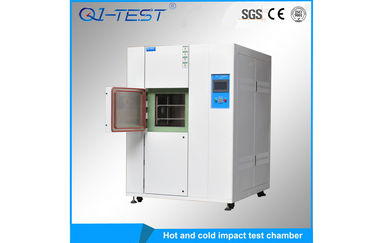

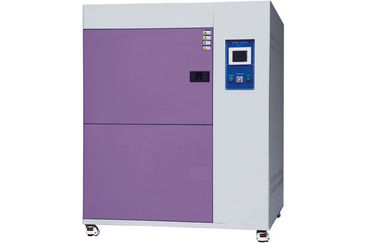

High Low Temperature Cycling 3 Zone Thermal Shock Test Chamber with Air Cooling
Q1-Test thermal shock test chamber is used to test products in alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence.
QTS3 series air-to-air thermal shock chambers circulate cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set point, allowing quicker recovery of the desired condition after transfer, call Mr. Andy Dai 0086-13450058229 or email sales@q1-test.com ask for price.
QTS3-40 Features:
Testing Standards:
MIL-STD-883E Method 1011.9 Thermal Shock
MIL-STD-202G Method 107G thermal Shock
JIS C 0025 Change of temperature
IEC 61300-2-47 Tests-Thermal Shocks
JEDEC JESD47E
JESD22-A104C Temperature cycling
GB/T 2423.22-2012 Test N: Change of temperature
SJ/T10186-91Y73
Model Selection:
| Model |
Interior dimensions (W ×H × D) |
Interior Volume |
Exterior dimensions (W ×H × D) |
Specimen loading weight |
| QTS3-40A/B/C |
400 ×350× 400mm 15.7”×13.8”×15.7” |
56L |
1450× 1950 ×1600mm 57.1” ×76.8” ×63.0” |
2.5Kg |
| QTS3-50A/B/C |
500 ×400× 400mm 19.7”×15.7”×15.7” |
80L |
1550× 2050 ×1600mm 61.0” ×80.7” ×63.0” |
5.0Kg |
| QTS3-60A/B/C |
600 ×500× 500mm 23.6”×19.7”×19.7” |
150L |
1650× 2150 ×1800mm 64.9” ×84.7” ×70.9” |
7.5Kg |
| QTS3-75A/B/C |
750 ×600× 500mm 29.5”×23.6”×19.7” |
225L |
1850× 2250 ×1800mm 72.8” ×88.6” ×70.9” |
7.5Kg |

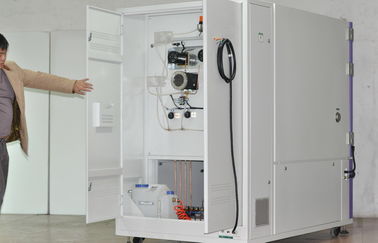

Technical Specifications:
| Structure | Pre-cooling Zone, Pre-heating Zone, Testing Zone (Selectable 2-Zone or 3-Zone Test for stationary object test) |
| Damper Device | Forced Air Damper |
| Interior Material | SUS#304 Stainless Steel |
| Exterior Material | stainless steel with environmentally baking paint |
| Testing Shelves | Stainless Steel Plate |

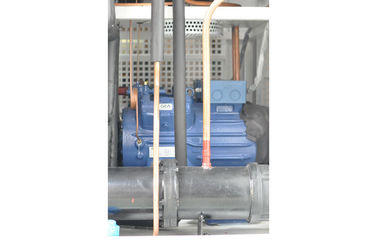

| Refrigeration | Cascade Refrigeration System |
| Cooling Method | Water/Air Cooling |
| Ambient Temperature | 5℃～30℃ |
| Pre-heating Temperature | 80℃～200℃ |
| Pre-cooling Temperature | －40℃ (－60℃/－75℃)～－10℃ |
| High Temp. Shocking | 60℃～150℃ |
| Low Temp. Shocking |
A=―35℃～0℃ B=―55℃～10℃ C=―65℃～10℃ |
| Temp. Uniformity | Less than ±2℃ |
| Transition time | <10 seconds |
| High Temp. Recovery time | RT℃～150℃/5min |
| Low Temp. Recovery time | RT℃～－75℃/5min |
| Pre-heating Time | 40min (30min for 56L) |
| Pre-cooling Time | 80min (60min for 56L) |
| Controller | Powerful interactive LCD touch screen controller |
| Setting Range |
Temperature: －200℃～300℃ Time: 0H1m～9999H59m Cycle: 1～9999cycle |
| Resolution |
Temperature: 0.01℃ Time: 1min |
| Control Method | PID+SSR |
| Power supply | AC380V/50Hz/3P |
| Accessories |
Viewing Window, Cable Port, Chamber Illumination, LCD touch screen controller, Power cable |
| Security System | Overheat Protector, Compressor overload protector, Controller protector, Motor overload protector |
| Note: |
1. Ambient temperature of +23℃ and a cooling water temperature of +25℃ 2. During pre-heating, prevention for temperature heat-up may be worked 3. Performance shown above conforms to IEC61300-2-47 4. Temperature heat-up/pull-down time is applicable only during independent chamber operation |
