Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber

China Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber supplier
Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber supplier Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber supplier Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber supplier

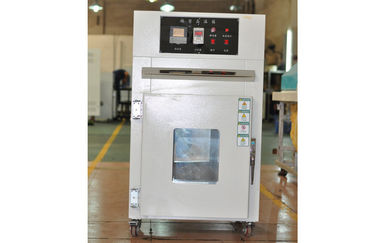

Large Image :  Stainless Steel Industrial Drying Oven Lab Electric Vacuum Drying Oven Heat Chamber

Product Details:

Brand Name: iqualitrol
Model Number: QKX-72

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Interior Dimension: 45 X 40 X 40cm Control System: Hot Air Circulation Control
Temp Range: RT+20℃ ~ 300℃ Heating Rate: RT~100℃ Within 10 Min
Temp: Uniformity ±1.5℃ Interior Material: SUS304# Mirror Stainless Steel
Highlight:

hot air circulation drying oven

,

laboratory hot air oven



Industrial Stainless Steel Lab Electric Vacuum Drying Oven Heat Chamber



Product Overview:

Drying ovens are devices used to remove water and other solvents from the items placed inside them. Whether used in the home to dry items such as flowers quickly and safely, or on an industrial scale with conveyor belts feeding foodstuffs into the ovens all day, the basic functions of the drying oven remain the same.



These ovens remove moisture through a convection process, collecting it elsewhere so the object becomes dehydrated.



Bench-top forced air oven is designed to meet both manufacturing and laboratory requirements. Our standard ovens are in stock and ready to ship.



Features:

1, Oven exterior material is high quality Cold Rolled Steel with surface treatment, nice appearance and durable.

2, Interior material is SUS304# mirror stainless steel with excellent heat resistance and easy to clean.



3, Unique combination of bottom scattered wind and heater, centrifugal turbine cycle effectively extend using life of fan.

4, Temperature uniformly distributed in the interior chamber, loop fan is automatically closed after temperature reaches setup.



5, With over-heat protection switch and power off memory function.

6, The Ovens are widely used in kinds of composite materials, like electric parts, rubber, plastics, aerospace and automotive industries, etc.



7, Custom made maximum temperature range from room temperature to 500℃.

8, Vacuum oven is available according to specific applications.



Specifications:

Model QKX-72 QKX-150 QKX-270 QKX-1000 QKX-540

Interior dimensions

mm

W 450 500 600 1000 900
H 400 600 900 1000 1200
D 400 500 500 1000 500

Exterior dimensions

mm

W 660 750 830 1200 1090
H 820 1160 1580 1600 1800
D 520 620 680 1200 670
Power AC380V, 50/60HZ, Three-phase (Specified by User)
Control System Hot air circulation control mode
Ambient temp. & humid. Range +5℃ ~ +35℃ / <85%RH
Temp. range RT+20℃~300℃(The maximum operating temperature recommend ≤260℃)
Heating up time RT~100℃within 10 min
Temp. uniformity ±1.5℃
Temp. constancy ±0.5℃
Temp. accuracy ±0.1℃
Interior material SUS304# mirror stainless steel
Exterior material high quality Cold Rolled Steel with surface treatment
Insulation Glass wool
Safety devices Overheat protector, Magnetic switch, Porcelain fuse, Alarm system
Accessories Adjustable Shelf 2pcs, Overheating protective device

Note:

1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.

2, The above specifications are for reference only, the actual specifications for the main quotation.

3, Interior dimension is available for custom made.
