|Interior Dimension:||50 X 60 X 50cm||Control System:||Hot Air Circulation Control|
|Temperature Range:||RT+20℃ ~ 300℃||Heating Rate:||RT~100℃ Within 10 Min|
|Insulation:||Glass Wool||Interior Material:||SUS304# Mirror Stainless Steel|
hot air circulation drying oven,
laboratory hot air oven

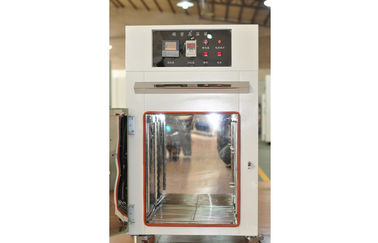

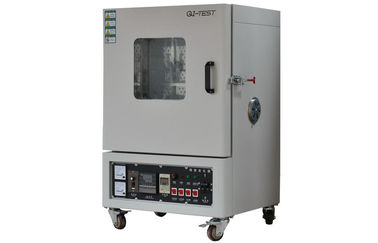

Single Door Laboratory Industrial Hot Air Circulating Drying Oven Easy to Clean
Bench-top forced air oven is designed to meet both manufacturing and laboratory requirements. Our standard ovens are in stock and ready to ship.
Drying ovens are devices used to remove water and other solvents from the items placed inside them. Whether used in the home to dry items such as flowers quickly and safely, or on an industrial scale with conveyor belts feeding foodstuffs into the ovens all day, the basic functions of the drying oven remain the same. These ovens remove moisture through a convection process, collecting it elsewhere so the object becomes dehydrated.
1, Oven exterior material is high quality Cold Rolled Steel with surface treatment, nice appearance and durable.
2, Interior material is SUS304# mirror stainless steel with excellent heat resistance and easy to clean.
3, Unique combination of bottom scattered wind and heater, centrifugal turbine cycle effectively extend using life of fan.
4, Temperature uniformly distributed in the interior chamber, loop fan is automatically closed after temperature reaches setup.
5, With over-heat protection switch and power off memory function.
6, The Ovens are widely used in kinds of composite materials, like electric parts, rubber, plastics, aerospace and automotive industries, etc.
7, Custom made maximum temperature range from room temperature to 500℃.
8, Vacuum oven is available according to specific applications.
|Power||AC380V, 50/60HZ, Three-phase (Specified by User)|
|Control System||Hot air circulation control mode|
|Ambient temp. & humid. Range||+5℃ ~ +35℃ / <85%RH|
|Temp. range||RT+20℃~300℃(The maximum operating temperature recommend ≤260℃)|
|Heating up time||RT~100℃within 10 min|

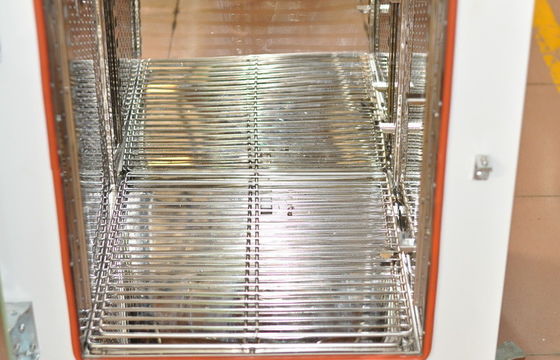

|Interior material||SUS304# mirror stainless steel|
|Exterior material||high quality Cold Rolled Steel with surface treatment|
|Safety devices||Overheat protector, Magnetic switch, Porcelain fuse, Alarm system|
|Accessories||Adjustable Shelf 2pcs, Overheating protective device|
1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.
2, The above specifications are for reference only, the actual specifications for the main quotation.
3, Interior dimension is available for custom made.
