|Interior Dimension:||90 X 60 X 50cm||Control System:||Hot Air Circulation Control|
|Temp Accuracy:||±0.1℃||Heating Rate:||RT~100℃ Within 10 Min|
|Insulation:||Glass Wool||Interior Material:||SUS304# Mirror Stainless Steel|
hot air circulation drying oven,
vacuum drying oven

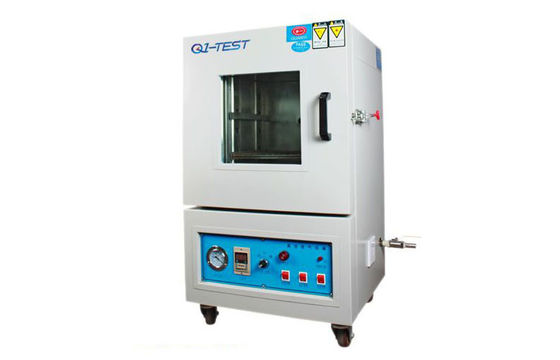

Inner SUS304 High Temperature Digital Industrial Electric Vacuum Drying Oven
The function of a Drying Oven is to remove moisture from a product. Depending upon the process and production requirement, a Batch or Conveyor configuration is available. to meet both process and safety requirements, the exhaust system is engineered to accommodate specific moisture release rates. Multiple heat zone configurations can be provided to maximize drying efficiency.
Each Industrial Oven project undergoes a comprehensive evaluation of every production requirement. The assessment includes areas such as production goals, part configuration and construction, part mass, temperature profile, and facility location or elevation.
1, Temperature uniformly distributed in the interior chamber, loop fan is automatically closed after temperature reaches setup.
2, With over-heat protection switch and power off memory function.
3, The Ovens are widely used in kinds of composite materials, like electric parts, rubber, plastics, aerospace and automotive industries, etc.
4, Custom made maximum temperature range from room temperature to 500℃.
5, Vacuum oven is available according to specific applications.
6, Oven exterior material is high quality Cold Rolled Steel with surface treatment, nice appearance and durable.
7, Interior material is SUS304# mirror stainless steel with excellent heat resistance and easy to clean.
8, Unique combination of bottom scattered wind and heater, centrifugal turbine cycle effectively extend using life of fan.
|Power||AC380V, 50/60HZ, Three-phase (Specified by User)|
|Control System||Hot air circulation control mode|
|Ambient temp. & humid. Range||+5℃ ~ +35℃ / <85%RH|
|Temp. range||RT+20℃~300℃(The maximum operating temperature recommend ≤260℃)|
|Heating up time||RT~100℃within 10 min|
|Interior material||SUS304# mirror stainless steel|
|Exterior material||high quality Cold Rolled Steel with surface treatment|
|Safety devices||Overheat protector, Magnetic switch, Porcelain fuse, Alarm system|
|Accessories||Adjustable Shelf 2pcs, Overheating protective device|
1, At 20℃ ambient temperature or 25℃ water temperature and non-loaded.
2, The above specifications are for reference only, the actual specifications for the main quotation.
3, Interior dimension is available for custom made.
