Product Details:
Payment & Shipping Terms:
|
| Magnification: | Standard: 18X~65X | Eyepiece: | Inclined 45° |
|---|---|---|---|
| WD: | Working Distance 92mm | Focus Range: | Track Stand:100mm |
| Light: | LED Coaxial Illumination | Observation: | Large Depth Of Field |
| High Light: | inverted metallurgical microscope,stereo dissecting microscope |
||

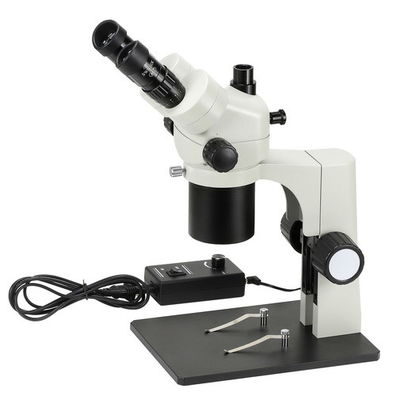

Trinocular Coaxial Illumination Zoom Stereo Microscopes with Magnification 18X~65X
Products Information:
◆ iStereo-116C(binocular) and iStereo-116TC(trinocular)
◆ Unique optical design, high-quality LED coaxial illumination, high contrast, and large depth of field
◆Applied for images observation ,inspection and measurement on semiconductor, LCD, LED and etc., Which needs coaxial illumination
Technical Data:
| Magnification | Total magnification (standard outfits): 18X~65X, Extend total magnification:195X |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 45° |
| WD | 92mm |
| Focus range | Track stand:100mm |
| Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| The holder and the head matching dimension | Φ76mm |
| Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V,10W) on the top. |
| Eyepiece | Item | Main body |
| 10X/Φ23 | Total Mag. | 18X~65X |
| FOV(mm) | Φ12.78~Φ3.5 | |
| 15X/Φ17 | Total Mag. | 27X~97.5X |
| FOV(mm) | Φ9.4~Φ2.6 | |
| 20X/Φ14 | Total Mag. | 36X~130X |
| FOV(mm) | Φ7.78~Φ2.2 | |
| 30X/Φ9 | Total Mag. | 54X~195X |
| FOV(mm) | Φ5~Φ1.4 | |
| WD(mm) | 92 | |
What is Stereo Microscopes:
The stereo or stereoscopic is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.
The instrument uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.
Stereomicroscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.
The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering. They are thus widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
