Product Details:
Payment & Shipping Terms:
|
| Features: | ABS Housing And Stainless-steel Standard Components | Grinding Disc: | Single Disc, Diameter φ250mm |
|---|---|---|---|
| Speed: | Stepless Speed 50-600rpm | Loading: | 5–150 Newtons (N) |
| Dwell Time: | 60–999 Seconds (s) | Power: | 700W |
| Highlight: | metallurgical sample preparation equipment,metallurgical laboratory equipment |
||

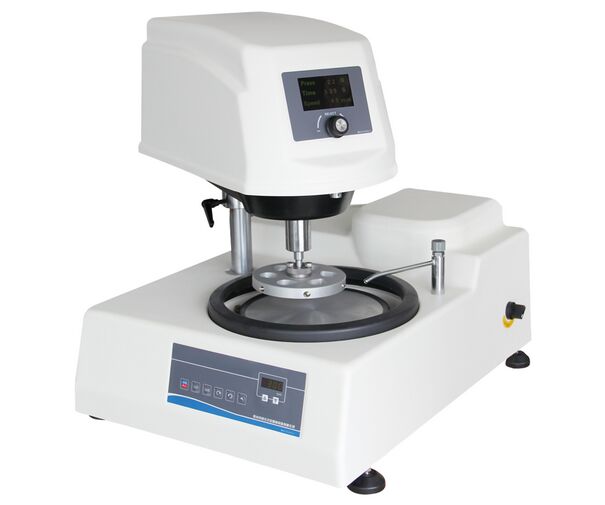

Center Loading LCD
Display Automatic Grinding And Polishing Machine With Polishing Head
Model: iGrind-822
Download Technical Data: Grinding Polishing Machine iGrind-822
Brief Introduction:
The iqualitrol iGrind-822 automatic grinding and polishing machine is a single-disc, benchtop unit that, in accordance with international standards and utilizing state-of-the-art manufacturing technologies, represents a new generation of high-precision, automated sample-preparation equipment.
iGrind-822 features freely selectable rotation directions for the grinding/polishing platen, quick-change platen capability, a multi-sample holder, and mechanical center-force loading, as well as automated abrasive delivery.
Equipped with an advanced microprocessor control system, the machine enables stepless speed adjustment of both the grinding/polishing platen and the polishing head, while sample preparation pressure and time settings are intuitive and easy to configure.
Simply by changing the grinding/polishing platen or the abrasive paper and fabric, the grinding and polishing processes can be completed, thereby endowing the machine with even broader applicability.
iGrind-822 equipped with a water-cooling system that cools the specimen during grinding, thereby preventing overheating and subsequent degradation of the metallographic structure.
Coupled with an ABS housing and stainless-steel standard components, it boasts a more elegant and refined appearance, enhanced corrosion and rust resistance, and easy cleaning. In addition, the machine features smooth rotation, high safety and reliability, a compact design, and low noise levels.
iGrind-822 is designed for automated sample preparation, covering the entire workflow from rough grinding and fine grinding to coarse polishing and fine polishing of metallographic specimens. It is an ideal sample-preparation instrument for laboratories in enterprises, research institutions, and higher education institutions.
Technical Specifications:
| Grinding and polishing disc diameter | φ250mm |
| Polishing pad rotational speed | 50–600 r/min (stepless speed regulation); 150 r/min and 300 r/min (two-speed fixed-speed) |
| Grinding and polishing head speed | 50–100 r/min (stepless speed regulation) |
| Loading range | 5–150 newtons (N) |
| Sample preparation time | 60–999 seconds (s) |
| Specimen diameter | φ30mm (customizable) |
| Input voltage | Single-phase AC 220V 50Hz |
| Input Power | 700W |
| External dimensions | 632×750×700 (mm) |
| Net weight | 72kg |
