Product Details:
Payment & Shipping Terms:
|
| Disc Diameter: | 250mm | Rotate Speed: | 50-1000rpm |
|---|---|---|---|
| Pressure: | 5-60N | Sample: | Diameter 30mm |
| Disc Qty: | Double | Rotate Direction: | Clockwise And Anticlockwise |
| Highlight: | metallographic sample cutting machine,metallurgical laboratory equipment |
||

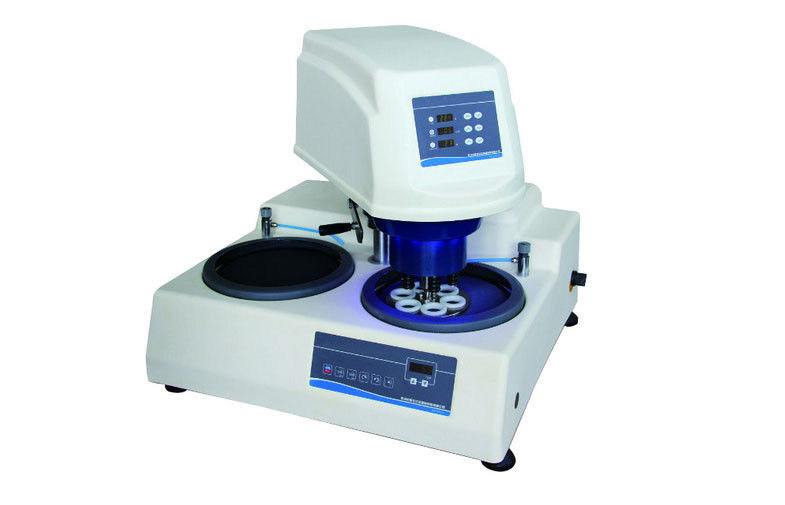

Center Force Loading Metallographic Grinding And Polishing Machine Automatic Polishing Machine
Brief Introduction:
iGrind-819 apply advanced microprocessor control system, which control sample preparation process.
Grinding disc support the rotation in clockwise and anticlockwise, stepless speed within 50-1000rpm, pneumatic single point loading.
It can grind and polish 6pcs specimen simultaneously, also suitable for the single specimen sample preparation pressure, time setting is intuitive and convenient.
iGrind-819 is applicable to rough grinding, fine grinding, coarse polishing and fine polishing process, it is an ideal equipment for enterprises, scientific research institutions and colleges laboratory.
Technical Specifications:
| Disc Diameter | 250mm |
| Disc Speed | 50-1000rpm |
| Polishing Head Speed | 5-100rpm |
| Loading Range | 5-60N |
| Setting Time | 0-9999s |
| Sample Diameter | 30mm |
| Sample Quantity | 6 PCS |
| Gas source | 0.6-0.8MPa |
| Lighting | LED |
| Power Supply | AC220V/50HZ/1Ph |
| Power Comsumption | 1300W |
| Dimension | 730*710*635mm |
| Net weight | 98kg |
