3D Stereope-3030: | Viewing Angle 30° | 3D Stereope-3045: | Viewing Angle 45° |
---|---|---|---|
Magnification: | Zoom 0.35X - 2.25X | Video: | Magnification 25X - 152X |
Camera: | VGA 1/2.5" Color Camera | Illumination: | LED Ring Light-source |
Highlight: | inverted metallurgical microscope,stereo dissecting microscope |

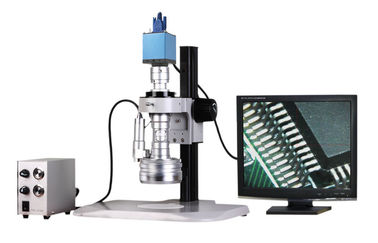

VGA Color Camera 3D Stereo Zoom Microscope with Magnification 25X-152X
Brief Introduction:
3D stereo microscope is the high-power digital zoom video microscope inspection system to inspect three dimension structures, such as SMT solders joints, QFP, capacitors connectors, wire bonds, medical stents, medical devices and chemical powders.
3D stereo microscope has a special 45 degree oblique viewing adapter which is motorized to rotate around the sample for three dimensional viewing, it is able to see things not possible with traditional 2D microscope.
Technical Specifications:
Product Name | 3D Digital Stereo Zoom Microscope | |
Model | 3D Stereope-3030 | 3D Stereope-3045 |
Oblique Viewing | 30° | 45° |
Rotary Viewing Angle | 360° | |
Optical Zoom Magnification | 0.35×-2.25× | |
Digital Video Magnification | 25×-152× | |
VGA Camera | Image Output: 1/2.5〞Color Camera | |
Resolution: 1.3M(1280×-1024×) | ||
Auto Balance | ||
Power Supply:DC 12V | ||
LCD Monitor
|
Display Size: 17〞Square Screen | |
Image Output: AV,VGA,HDMI | ||
With Balance and R.G.B Setting | ||
View Angle: 160°/160° | ||
Power Supply: DC 12V | ||
Illumination | Built-in Adjustable LED Ring Light-source | |
Motor | DC 5V Servo Motor | |
Controller Box | Direction Control: Clockwise and Counter-clockwise | |
Rotation speed: Fast/Slow/Stop | ||
LED light intensity | ||
Power supply:90-250V/50Hz or 60Hz | ||
Application Industry | SMT,PCB,BGA,etc |
Standard Delivery:
3D Microscope body | Built-in DC servo motor | 17〞TFT-LCD TV monitor |
Built-in Adjustable Ring LED Illumination |
0.5×CCD Adapter | 1/2.5〞Color Camera |
LED illuminator and servo motor Cotroller |
Microscope Stand | 3D Image Mirror |
