Dimension: | 9 X 500mm X 1 (Single Fiber) | Power: | AC220V/50Hz/150W |
---|---|---|---|
Filter: | Red/Blue/Green/Yellow | Fiber Adapter: | 20mm |
IZK-150S: | Single Arm | IZk-150T: | Twin Arm |
Highlight: | stereo inspection microscope,stereo dissecting microscope |

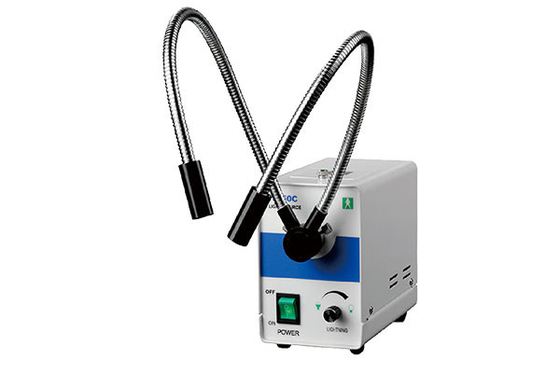

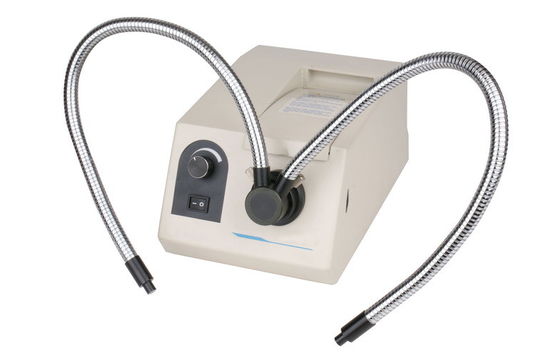

Stereo Industrial Microscope Fiber Cold Light Illumination Long Using Life with Color Filters
Brief Introduction:
iZK-150 series cold fiber illumination through filtration and a serial of user defined color filters. It has high intensity fiber optic illumination and accessories that allow you to positioning the light for best possible viewing.
The original design shown above features and a sturdy small footprint through integrated solid state circuitry. The 150W lamp is equipped with a variable control, it provides excellent illumination for high brightness and low heating.
Fiber optic illumination is the conveyance or transmission of light from a source (output) to one or several fibers, allowing light to escape through the end of the fiber and illumination apparatus. Widely used in medical, dental, automotive, and research applications, fiber optic illumination provides a clean, cold light to be routed, targeted, focused, and/or directed to very specific hard to reach locations or areas.
Fiber optic illumination generally uses large core plastic optic fiber as opposed to glass, as it allows a very large amount of light to pass, creating a more brilliant light effect. Most illumination applications utilize light pipes or incoherent bundles as the conduit for light transmission. Both light pipe and incoherent bundles can be manufactured from very small to very large scale, depending on your requirement, space constraints, illumination source, and your light output requirements.
iqualitrol’s fiber optics for illumination are designed and manufactured to provide superior performance and longevity in a variety of applications.
Features:
1, streamline facade, new design for easy replacing lamp;
2, adopt over loading protect set, brightness > 23000Lu;
3, Color change by filter, Red/Blue/Green/Yellow;
Technical Specifications:
Model | iZK-150R (Ring) |
iZK-150S (Single Arm) |
iZk-150T (Twin Arm) |
Fiber Dimension |
F55 x F10 x 1000mm |
9 x 500mm x 1 |
9 x 500mm x 2 |
Power Supply | AC110V/60Hz/150W; AC220V/50Hz/150W | ||
Output Voltage | 21V | ||
Dimension of Controller | 210 x 170 x 130mm | ||
Filter Color | Red/Blue/Green/Yellow | ||
Fiber Adapter Diameter | 20mm | ||
Ring Adapter Diameter | Available 30-70mm |
