Protable NK Analog Force Gauge with Peak holding easy to transit and stock

China Protable NK Analog Force Gauge with Peak holding easy to transit and stock supplier

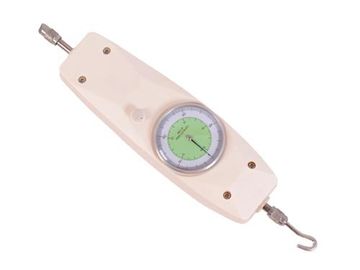

Large Image :  Protable NK Analog Force Gauge with Peak holding easy to transit and stock

Product Details:

Brand Name: iqualitrol
Model Number: NK-30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Max Load: 30N/ 3kg Min Load: 3N/ 0.3kg
Resolution: 0.2N/ 20g Rod Journey: 10mm
Work Temperature: 20°+/-10℃ Carry Temperature: -27℃~+70℃
Highlight:

non destructive testing instruments

,

fruit hardness tester



Protable NK Analog Force Gauge with Peak holding, easy to transit and stock



Product Description:

The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.

They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,



building windows and doors, compound materials, electric wire and cable, auto part, power generator,

scientific research institute to do the push pull force insertion force and destructive experiment.



Character:

1, With easy operate and can be installed with all kinds of test stand and clamp.
2, Peak holding function and continuous.


One year free maintenance.
Compact and artistic packing, easy to transit and stock.


Two kind of unit dual show at the same time,don't need unit conversion.
NK Series: Newton and Kilogram dual unit;


NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy.



Specifications:

Model NK-20 NK-30 NK-50 NK-100 NK-200 NK-300 NK-500
Max load

20N

2kg

30N

3kg

50N

5kg

100N

10kg

200N

20kg

300N

30kg

500N

50kg

Min load

2N

0.2kg

3N

0.3kg

5N

0.5kg

10N

1kg

20N

2kg

30N

3kg

50N

5kg

Load graduation value

0.1N

20g

0.2N

20g

0.25N

50g

0.5N

100g

1.0N

200g

2.0N

200g

2.5N

500g

Rod journey 10mm
Work temperature 20°+/-10℃
Carry temperature -27℃~+70℃
Relative humidity 15%~80%RH
Work environment No vibrancy and no cautery



Model ALB-4 ALB-10 ALB-20 ALB-40 ALB-100
Max load

4.5Ib

2kg

11Ib

5kg

22Ib

10kg

45Ib

20kg

110Ib

50kg

Min load

0.45Ib

0.2kg

1Ib

0.5kg

2.2Ib

1.1kg

4.5Ib

2.2kg

11Ib

5.5kg

Load graduation value

0.02Ib

0.02kg

0.05Ib

0.05kg

0.1Ib

0.1kg

0.2Ib

0.2kg

0.5Ib

0.5kg

Rod journey 10mm
Work temperature

20°+/-10℃

Carry temperature -27℃~+70℃
Relative humidity 15%~80%RH
Work environment No vibrancy and no cautery



Model NLB-20 NLB-30 NLB-50

NLB-

100

NLB-

200

NLB-

300

NLB-500
Max load

20N

4.4Ib

30N

6.6Ib

50N

11Ib

100N

22Ib

200N

44Ib

300N

66Ib

500N

110Ib

Min load

2N

0.4Ib

3N

0.6Ib

5N

1Ib

10N

2Ib

20N

4Ib

30N

6Ib

50N

10Ib

Load graduation value

0.1N

0.04Ib

0.2N

0.04Ib

0.25N

0.1Ib

0.5N

0.2Ib

1.0N

0.4Ib

2.0N

0.4Ib

2.5N

1.0Ib

Rod journey 10mm
Work temperature 20°+/-10℃
Carry temperature -27℃~+70℃
Relative humidity 15%~80%RH
Work environment No vibrancy and no cautery
