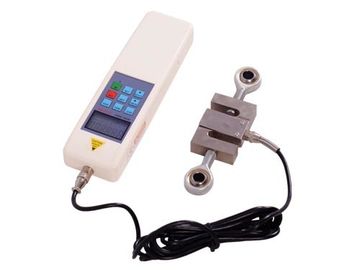

Non Destructive Testing Equipment Peak Holding HF S Digital Force Gauge HF 300N~100K

China Non Destructive Testing Equipment Peak Holding HF S Digital Force Gauge HF 300N~100K supplier

Large Image :  Non Destructive Testing Equipment Peak Holding HF S Digital Force Gauge HF 300N~100K

Product Details:

Brand Name: inqualitrol
Model Number: HF-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 30 Sets per month
Detailed Product Description
Peak Load Value: 2000N Load Division Value: 1N /0.1kg /0.1lbs
Indication Error: +/-1% Power: Rechargeable Batteries, Charger(charging Voltage 100V-240V)
Sensor Structure: S-tye Or Column Sensor With High Precision (external Sensor) Relative Humidity: 15%~80%RH
Highlight:

non destructive testing machine

,

fruit hardness tester



Peak holding HF S Digital force gauge(HF 300N~100K) With easy operate



Product Description:

The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.



They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,building windows and doors, compound materials, electric wire and cable, auto part, power generator,scientific research institute to do the push pull force insertion force and destructive experiment.



Features:
1. With easy operate and can be installed with all kinds of test stand and clamp.
2. Peak holding function and continuous.


3. One year free maintenance.
4. Compact and artistic packing, easy to transit and stock.


5. Two kind of unit dual show at the same time,don't need unit conversion.
6. NK Series: Newton and Kilogram dual unit.


7. NLB Series: Newton and Pound dual unit.
8. ALB: Pound and Kilogram dual unit.
9. Needle indicates, easy to read, high accuracy.



Model specification sheet of force gauge with external sensor:

Model specifi-cation HF-2000 HF-5000 HF-10K HF-20K HF-50K HF-100K HF-200K HF-500K HF-1000K
Peak load value 2000N 5000N 10KN 20KN 50KN 100KN 200KN 500KN 1000KN
load division value 1N 1N 0.01KN 0.01KN 0.01KN 0.1KN 0.1KN 0.1KN 1KN
0.1kg 0.1kg 0.001kg 0.001kg 0.001kg 0.01kg 0.01kg 0.01kg 0.1kg
0.1lbs 0.1lbs 0.001Klbs 0.001Klbs 0.001Klbs 0.01Klbs 0.01Klbs 0.01Klbs 0.1Klbs
Indication error ±1% ±1%
Unit N / (KN), kg / (Mg or t), lb (KIb)
Data interface Rs232 nine-hole socket
Power rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure S-tye or column sensor with high precision (external sensor)
Ambient temp-erature 5° C~35° C
Transport temp-erature -10° C~60° C
Relative humidity 15%~80%RH
Working conditions No hypocenter and corrosive medium
Gross weight 6 kg 9 kg 24 kg 36 kg
Size 280 x 200 x 170 mm 310 x 260 x 190 mm



Model specification HF-2000K HF-3000K
Peak load value 2000KN 3000KN
load division value 1KN
0.1Mg
0.1Klb
Indication error ±1%
Unit N / (KN), kg / (Mg or t), lb (Klb)
Data interface Rs232 nine-hole socket
Power rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure S-type or column sensor with high precision (external sensor)
Ambient temperature 5° C~35° C
Transport temperature -10° C~60° C
Relative humidity 15%~80%RH
Working conditions No hypocenter and corrosive medium
Gross weight 36 kg
Size 310 x 260 x 190 mm
