Product Details:
Payment & Shipping Terms:
|
Measurement Range: | 0.2~10kg/cm2(x10⁵pa)/0.4~20kg/cm2(x10⁵pa) | Division Value: | 0.01~10kg/cm2/0.01kg/cm2 |
---|---|---|---|
Seaming Chuck Diameter: | 1*Φ11.1mm/2*Φ7.9mm | Depth Pressed By Seaming Chuck: | 10mm |
Indication Way: | +/-1% | Indication Error: | +/-0.5% |
Highlight: | non destructive testing instruments,fruit hardness tester |

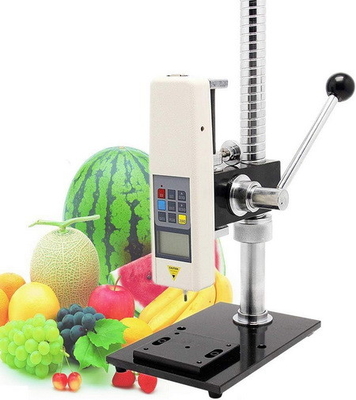

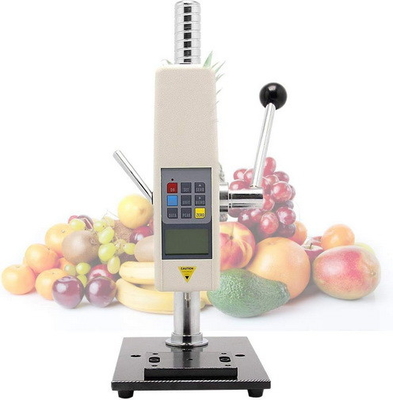

Portable GY-4 Digital fruit hardness tester Store and input data to computer for statistical

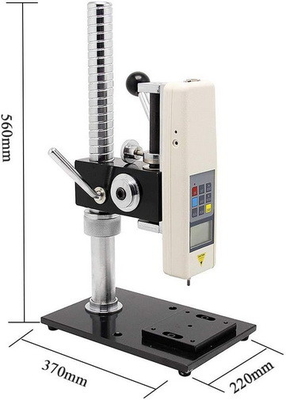

GY-4 digital fruit hardness tester has advantages high precision,easy operation and carry.It can store and input data to computer for statistical,It can be used together with a special test table to increase measurement accuracy.
Model | GY-4 | |
Measurement Range | 0.2~10kg/cm2(x10⁵pa) | 0.4~20kg/cm2(x10⁵pa) |
Division Value | 0.01~10kg/cm2 | 0.01kg/cm2 |
Seaming Chuck Diameter | 1*Φ11.1mm | 2*Φ7.9mm |
Depth Pressed by Seaming Chuck | 10mm | |
Indication Way | +/-1% | |
Indication error | +/-0.5% | |
Unit | Kg/cm2(x10⁵pa) | |
Data interface | Rs232 nine-hole socket | |
Power | Rechargeable batteries charger(charging voltage 100v-240v) | |
Sensor Structure | Tye sensor with high precision (inner sensor) | |
Ambient temperature | 5℃~35℃ | |
Ransport temperature | -10℃~60℃ | |
Relative humidity | 15%~80%RH | |
Working conditions | No hypocenter and corrosive medium | |
Net weight | ~450g | |
Outline dimension | 230x66x36mm | |
Indication Way | Digital |
