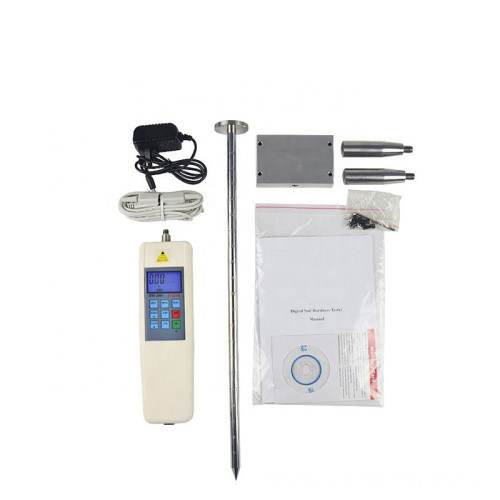

50Kg Non Destructive Testing Equipment , Digital Soil Hardness Tester Data Output Function Auto-Off Time Setting

Peak value maintaining function TYD-2 Digital Soil Hardness Tester Data output function Auto-off time setting

Ⅰ Functional features

1. High-precision and high-resolution: large-screen LCD display, with backlight function (backlight for night use), and positive, inverted reverse function of digitals on the screen.

2. Has a battery capacity display: divide into 3, 2 and 1 grids. If too low electricity, the instrument will automatically shut down.

3. Gravity acceleration setting function: users can input the exact value of gravity acceleration at their discretion to allow the test more precise.

4. Peak value maintaining function: maintain the peak value display until zero adjustment manually.

5. Automatic peak function: Maintain to display the peak values for 2 s before automatically elimination.

6. Large memory storage function: can store 896 test values.

7. Data output function: data can be input in the computer for various analyses through data links.

8. Auto-off time setting: with automatic off-time setting, 10min-90 min automatic shutdown can be set.

9. High quality charging power supply: 100-240v of charging voltage can be available, suitable for most domestic and foreign areas.

Ⅱ Technical Parameter:

1.  Model:TYD-2.

2.  Maximum load:50Kg (Kg,Ng and ib Three units can be automatically converts).

3. Resolution:0.1Kg.

4.  Accuracy:±0.5%.

5.  Measuring depth:0～450mm.

6. Power: charging power supply:220V/AC；Continuous operating time of battery:6～8 hours.

7. Stability: temperature drift :0.2uV/℃(0-60℃)；Null drift:≤ 0.1%/8hour /FS

8. Calibration range: full-scale calibration.

9.  Ambient temperature:0～+60℃.

10. Ambient humidity:≤ 80%.

11. Allowable overload:150%.

12.  Power supply mode:5nickel cyanogen battery /220V AC charge 4～6 hours.
