Product Details:
Payment & Shipping Terms:
|
| Frequency Range: | Optional 10-200Hz, 10-500Hz, 10-1kHz, 10-2kHz, 10-5kHz, 10-10kHz | Storage Method: | Automatic Storage, Can Store 50 Point Numbers, Each Point Number Can Store 50 Data And A Spectrum List |
|---|---|---|---|
| Display: | 2.4-inch TFT High-definition Color Screen, 320 * 240 Resolution, Adjustable Backlight Brightness | Measurement Modes: | Dedicated Mode And Spectrum Mode |
| Shutdown Mode: | Manual Or Automatic Options Are Available | Accuracy: | Relative Error Of Frequency Response: ± 5% |
| Highlight: | non destructive testing machine,non destructive testing instruments |
||

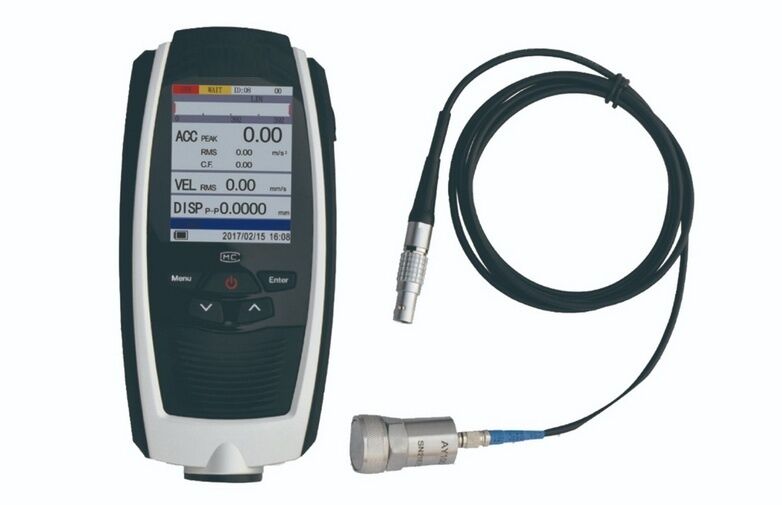

ICP accelerometer Portable Vibration Meter iKV-3000A with External Sensor Probe
Portable Vibration Meters:
Vibration is the oscillation, or back-and-forth movement, of machines and the components within them. Every machine will have a baseline or vibration level indicating the device is functioning properly and within normal parameters.
Once this baseline level is known, the machine can be monitored for any fluctuations in the vibration output. These fluctuations can have important indications about the functionality of the machine.
The iqualitrol iKV-3000A Portable Vibration Meter with External Sensor Probe used for on-site mechanical vibration measurement and analysis applications.
Technical Specifications:
| Measurement range | Acceleration: (0.1-392) m/s ² (peak) Speed: (0.01-800) mm/s ² (effective value) Displacement: (0.001-10) mm (peak to peak) |
| Frequency range | Acceleration: 10Hz-10kHz Speed: 10Hz-1kHz Displacement: 10Hz-500Hz |
| Accuracy | Reference sensitivity: ± 2% Linear relative error of amplitude: ± 5% Relative error of frequency response: ± 5% |
| FFT spectrum lines | 200, 400, 800, 1600, 3200 |
| Anti mixing filtering | 5th order low-pass elliptical filter |
| Optional frequency range | 10-200Hz, 10-500Hz, 10-1kHz, 10-2kHz, 10-5kHz, 10-10kHz |
| AD sampling | 12 bits, maximum 25.6k sampling frequency |
| Sampling points | 512, 1024, 2048, 4096, 8192 |
| Window functions | rectangular window, Hanning window, Haining window, flat top window |
| Display mode | 2.4-inch TFT high-definition color screen, 320 * 240 resolution, adjustable backlight brightness |
| Bluetooth | Bluetooth IQUALITROL V5.0 |
| Measurement modes | dedicated mode and spectrum mode |
| Calendar | can display time information and also add dates to the measured data, making it traceable |
| Storage method | Automatic storage, can store 50 point numbers, each point number can store 50 data and a spectrum list |
| Measurement units | metric and imperial can be converted to each other |
| Shutdown mode | manual or automatic options are available |
| Low battery indication | Indicates the current battery status |
| Battery | Two AA rechargeable nickel hydrogen batteries, fully charged, can work continuously for 16 hours |
What are Portable Vibration Meters?
A vibration meter is a tool used to measure, store, analyze, and diagnose the vibration levels produced by machinery or systems.
They typically detect overall acceleration, velocity, and displacement characteristics to capture vibration outputs accurately.
Vibration meters have working principles like the voltmeter — the tool’s magnetic base or detector is placed against the tested machine, and then the sensor will give a voltage signal in response to the vibration output of the device.
This reading will travel through the cable and the vibration meter. Its primary purpose is to identify any potential faults within the machine before it breaks down and causes costly delays in operation.
